For Sale - AIE - 3417 - Pelletizer

Specification

Reference Numbers

AIE - 3417

Product

Pelletizer

Manufacturer

Five Star Engineers, India

Product Details

Five Star's Pelletizer:
- Length of rotor: 10 inch
- No. of blades: 8
- Speed range: 640 to 1234 RPM
- Motor: 2 HP
- Capacity: 60 to 120 kg / hr

Blades:
Blades are high carbon high chromium tipped with the hardness of 60 on the Rockwell C Scale. High tension bolts are used for ritting blades. Rotor blades can be adjusted relative to the fixed blade so as to provide for uniform cutting.

Rotor:
Made from standard steel and accurately machined to enable dynamic balancing.

Guide Rolls:
Made of alloy steel and spring tension loaded to grip the strands with uniform pressure. The guide roll can be lifted by an attached lever mechanism.

Drive:
Power is provided through a motor mounted internally on the pelletizer stand.

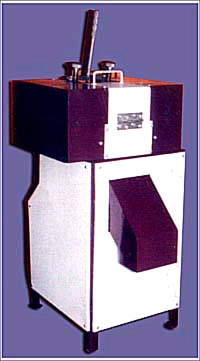

(For picture, please see next page)
