ProductMedium Range 8 Series Robots
ManufacturerWittmann Battenfeld India Pvt. Ltd.
A) W821 - W823 The Universal Robot Models:

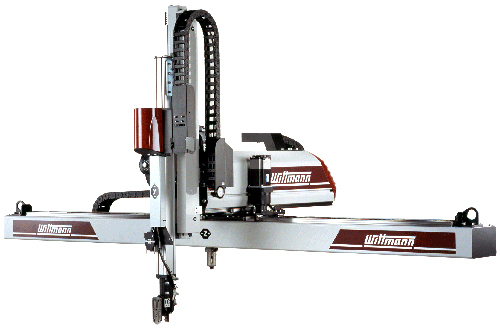

Wittmann all larger robots including the W821 models are designed with moveable kick stroke beam which is guided directly in the main carriage. The reduced moveable mass allows high acceleration and deceleration for extremely short cycle times.
The vertical arm is a rigid aluminum extrusion and guided in heavy-duty linear bearings. Driven by servomotor via belt to allow high speeds and short removal times.
2) W821 UHS:
Reinforced aluminum extrusion with 2 linear rails and powerful servo drive for highest accelerations and speeds. The top performance robot for the automation of thin wall injection molded parts for cycle times below 6 seconds. Configuration for reduced gripper and parts weight up to 5 kg (11 lbs).
3) W823 (Telescopic Vertical Arm):
The gripper is arranged in front of the telescopic arm and allows a very short telescopic tube. For minimum overall height and fast movements.
B) W831 - W832 Single Arm for Lower Strokes:
The larger rugged main steel beam allows a wider distance between the main bearings and therefore longer kicks strokes up to 900 mm (reach 1,190 mm) and longer vertical strokes up to 1,600 mm
Same vertical arm design as W821 but for vertical strokes up to 1,400mm. Due to the high operating speeds of the vertical arm and handling weights up to 10 kg (22 lbs), the W831 is one of our bestsellers for IMM up to 500 tons locking force.
The vertical arm is a rigid aluminum extrusion with two high load linear bearings and a maximum length of 1,600 mm. For payloads up to 20 kg (44 lbs) with high torque C-axis rotation for placing, the W732 is a popular robot for insert jobs.
(For images, please see next pages)
