For Sale - AIE - 3516 - Central Dryers - Silmax Intelligent Drying Hoppers

Specification

Reference Numbers

AIE - 3516

Product

Central Dryers - Silmax Intelligent Drying Hoppers

Manufacturer

Wittmann Battenfeld India Pvt. Ltd.

Product Details

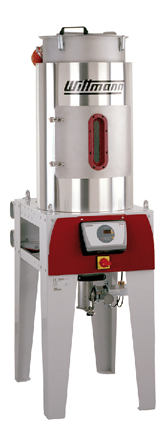

Wittmann Silmax Intelligent Drying Hoppers:
The Silmax drying hoppers with integrated micro processor control are available in table version from 70 up to 1000 liter and in free standing execution up to 6500 liter.

- SmartFlow intelligent air distribution: Automatic air distribution to adjust to different materials and fluctuating material demands.

- Robust stainless steel execution: All components in contact with the material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications.

- Efficiency enhancing insulation: The drying hoppers are equipped with 40 mm thick insulation across the entire height in order to reduce heat losses and to increase the drying efficiency.

- Convenient clean out door: Drying hoppers of sizes 100 liter and up are as equipped as standard with a clean out door ideally suited for the respective hopper diameter. The perfect geometry of the hopper guarantees a uniform drying of the material across the entire cross-section.

- Integrated Sight Glass: For the convenient visual inspection of material flow and level.

- Material Slide Gate: All drying hoppers are included as a standard with a manual slide gate.

Functional Scheme
1. Return air
2. Process air
3. SmartFlow
4. Process air heater
5. Take-off adapter
6. Plastic resin

Silmax Option:
Vacuum Take-off Adapter:
Available with one or two material outlets as well as with controlled discharged valve for the efficient purging after the loading cycle (in connection with Wittmann M7 control system).

(For picture, please see next page)
