For Sale - AIE - 3527 - Series MC for Medium to Large Throughputs

Specification

Reference Numbers

AIE - 3527

Product

Series MC for Medium to Large Throughputs

Manufacturer

Wittmann Battenfeld India Pvt. Ltd.

Product Details

Heavy duty granulators intended for recycling beside the injection molding machine (MC 34) and/or for centralized recycling (MC 46/MC 70) of runners, parts and various scrap.

Main Features:
- Tangential feed cutting chamber for optimal acceptance of parts
- Very good regrind quality due to reduced rotor speed (430 to 730 rpm according to model)
- Quick and easy knife maintenance with pre-adjustable knives that can be sharpened
- Advanced soundproofing

Rugged, High Performance Design
1) Cutting Chamber:
- Solid steel welded construction
- Screen with standard hole diameters from 6 to 12 mm (according to model and application), mounted on screen support, opened via gas or hydraulic cylinder (according to model)
- Replaceable wear plate on attack side in standard configuration

2) Rotor:
- Herringbone rotor supported on 2 heavy-duty outboard pillow block bearings
- Fitted with 3 or 5 blades
- Mechanical brake

3) Blades:
- Made of high alloy hardened steel that can be sharpened several times
- All blades are pre-adjustable using a pre-adjustment fixture supplied as standard, which simplifies installation and guarantees constant cutting circle and thus, consistent regrind quality
- Scissor style cutting for low energy consumption

4) Drive:
- Rotor is driven by pulley and belt
- Inertia flywheel in standard configuration

5) Electrical Equipment:
- Separate electrical control cabinet with star delta soft start (MC 46-60 and larger)
- Control circuit: 24 V for MC 34, 230 V for others

6) Feeding:
- Soundproofed feed hopper can be easily adapted for all types of feed methods - robot, conveyor or manual
- Hopper opening is assisted by cylinders (manual, electrical or hydraulic handling depending on the model)

7) Emptying:
- All regrind collection bins are prepared for blower evacuation
- Manual evacuation (collection bin with viewing window) available on request (according to the model).

8) Sound Control:
Models MC 34 and MC 46 are supplied with integrated and optimal soundproofing
Option for MC 70: soundproofed enclosure

Series MC:
The MC Series product range consists of 6 models. The MC Series granulators are compact and general-purpose for medium to large throughputs.

Complete Solution according to Customer Requirement:
- Manual feed
- Robot feed (optional)

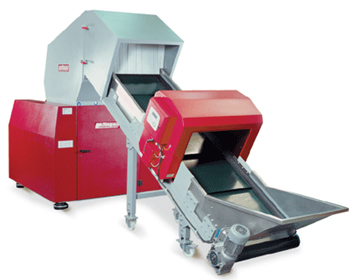

- Conveyor belt feed (optional)
a. with metal detector plate or tunnel style metal detector
b. with soundproofed tunnel

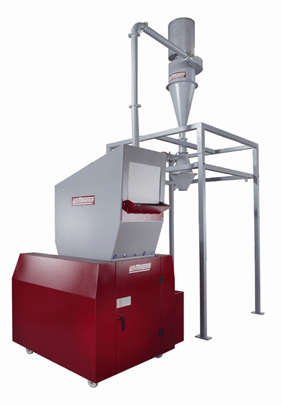

- Based on the customer's application different evacuation and dedusting systems are available (optional).

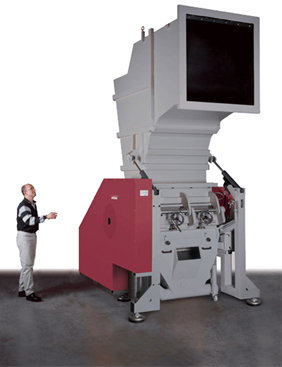

(For images, please see next pages)
