For Sale - AIE - 3603 - Grinder

Specification

Reference Numbers

AIE - 3603

Product

Grinder

Manufacturer

Raj Engineering Works, India

Product Details

Raj Engineering Grinder:
Rotor:
The one-piece rotor is made from Mild Steel and accurately machined to enable Dynamic Balancing.

Chambers:
Made of thick mild steel plates.
Side parts: Made of good quality Cast Iron. Mild Steel is used in case of grinders above 15" size. Rotor is housed in the side parts by means of heaving duty bearings.

Blades:
Blades are H.C.H.C. (High Carbon High Chromium) tipped with a hardness of 60 on the Rockwell C Scale. Blades are fitted by means of high-tension bolts. Fixed Blades are housed in the Chambers and are provided with adjusting bolts. Also provided is a separate arrangement to lock the blades in place and prevent their dislocation even when subjected to heavy operating loads.

Bottom Screen:
Made of Mild Steel Plate and provided with perforated holes.

Collecting Bin:
Made of Galvanized Steel.

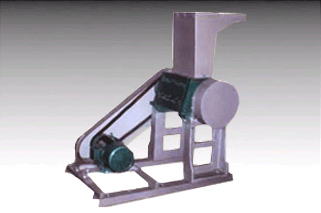

(For picture, please see next page)

For More Details Contact:
Raj Engineering Works
Mr. Mangesh Manjrekar
Tel.: +91-20-65104541
Mobile: +919923791818
E-mail: raj.engg.wks@gmail.com
Web: http://www.rajengg.net
