For Sale - AIE - 3604 - Agglomerator

Specification

Reference Numbers

AIE - 3604

Product

Agglomerator

Manufacturer

Raj Engineering Works, India

Product Details

Raj Engineering Agglomerator:
Body:
Made of M.S. with S.S.304 lining. Body made in two parts. Lower body of less height to aid in easy removal for setting of Blades.

Housing:
Houses the shaft fitted with the mixer blades. Consists of two heavy-duty bearings. Water cooling on housing helps to keep the temperature down to a minimum even at the high operating speed.

Blades:
Intensive Mixing Blades are provided with scraping arrangement. Blades are H.C.H.C. (High Carbon High Chromium) tipped with a hardness of 60 on the Rockwell C Scale. Blades are fitted in accurately machined slots and provided with Locking plates to allow proper fitting over the entire Blade width. High-tension Bolts are used for fitting Blades.

Motor:
Agglomerator is fitted with a AC motor according to required capacity.

Output:
A batch of 15 kgs to 25 kgs can be processed based on capacity.

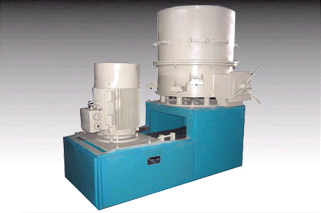

(For picture, please see next page)

For More Details Contact:
Raj Engineering Works
Mr. Mangesh Manjrekar
Tel.: +91-20-65104541
Mobile: +919923791818
E-mail: raj.engg.wks@gmail.com
Web: http://www.rajengg.net
