For Sale - AIE - 3703 - Mixers and Doses

Specification

Reference Numbers

AIE - 3703

Product

Mixers and Doses

Manufacturer

Madhu Marketing & Services, India - Minglee

Product Details

1) ML-CMS Color Mixer:
- All contact parts inside the color mixer are made of stainless steel.
- Using swirl method to proceed the mixing of raw material.
- Equipped with protective devices for safety.
- Equipped with motor overload protective device.
- Time controller with high performance.
- High quality electric components with good stability.

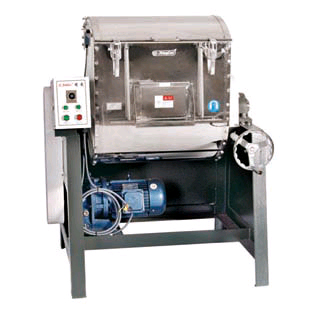

2) ML-CMB Horizontal Mixer:
- The mixing tank and vane are made of stainless steel and easy to keep clean.
- Equipped with protective devices to keep the operator and the unit from any danger.
- The mixing tank is adjustable from 0 Degree C to 100 Degree C for easy cleaning.
- Equipped with auto-stop adjustable from 0 to 10 minutes.
- Equipped with motor overload protective device.

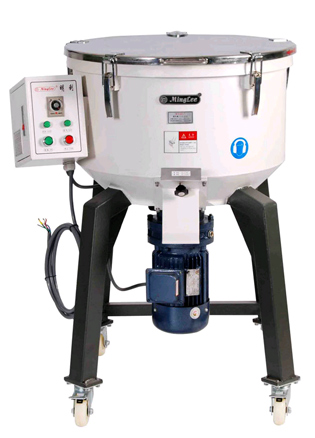

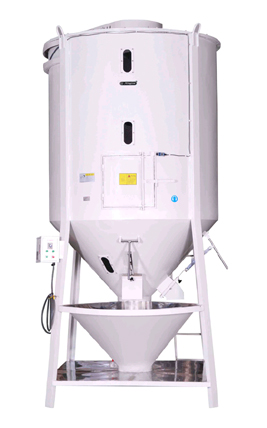

3) ML-CMZ Vertical Mixer:
- It generally takes 10-30 minutes to complete mixing materials for one time and the daily output is approximately 12-14 tons.
- Materials in the tank can be round stirred like swirl to decrease mixing time.
- The size of the material inlet mouth is adjustable to reach the best balance of the two sorts of materials.
- Full stainless steel configuration.
- Four levels: 500 kg, 1000 kg, 2000 kg and 3000 kg.

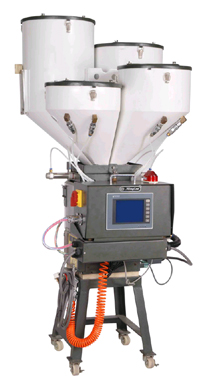

4) ML-GM Gravimetric Color Doses Mixer:
When the plastic molding machines requires a assorted material mixed together with different amount of weight, the ML-GM Series gravimetric color doses mixer is the best machine for the job.
This ML-GM Series gravimetric color doses mixer is designed with a micro-computer system and compensation function. Easy and personalized control. The mixing precision of each batch can be controlled to +/- 0.1 percent. Each time the machines starts running, it will automatically check the scale to ensure the best quality.

Features:
- All material are weighed and measured, enable to control quality.
- Quality of material can be monitored, once the material starts to change, the reparation system will immediately activate.
- It weighs the material each time upon activation to ensure product's quality.
- Four kinds of material can be loaded at the same time.
- Formula can be set and stored in the system of future use.
- It is easy to operate. Just need to add material to the hopper, switch on the controller, set the percentage you need in the touch screen monitor and the system will run automatically according to the input value. The alarm will work automatically if the material is used up.
- Vibration cannot be affected. The measuring unit can consider the impact and shock, so it can be ignored.
- Can be directly installed to molding machines.
- Can be cleaned easily.

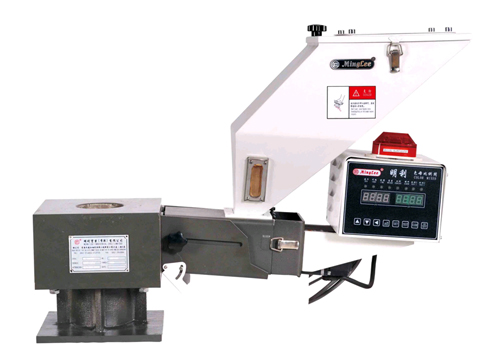

5) ML-LM Color Doses and Mixer:
ML-LM series Color Doses and Mixer is exact auto-metering equipment used for injection molding or other plastic processing industry. It is applicable to mix virgin with regrinding, master batches or additives homogeneously in different pre-set percentages and can get best quality with least waste while molding.

Features:
- Equipped with indicators of motor overload, and overheat.
- Intelligent operation for mixing proportionally with a deviation of - Equipped with direct current servo-motor.
- The installing obliquity of the screw is adjustable to best loading.

(For images, please see next pages)
