For Sale - M - 1398 - CNC Horizontal Machines

Specification

Reference Numbers

M - 1398

Product

CNC Horizontal Machines

Product Details

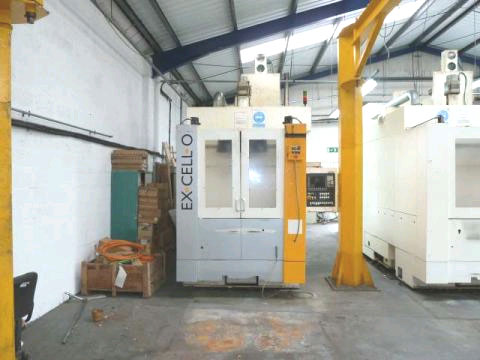

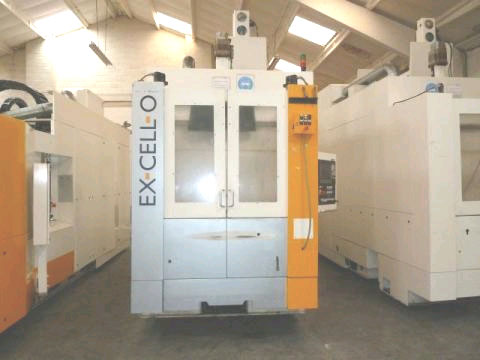

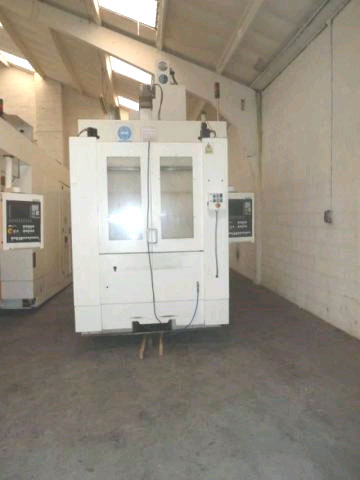

Model: Ex Cello XP245
- Year: 2000
- 2 off available
- 2 off 4 Axis CNC horizontal machining centre
- High speed precision
- Twin Pallet Siemens Sinumerik 840D - Control with Integrated PLC Siemens Indramat MTC200,
- 500 x 500 mm pallet
- Max pallet load: 630 kg
- Pallet change time: 7sec
- 24 station automatic tool changer
- Spindle speed range: 1-16,000 Rpm
- Linear axis travel 'X' 630 mm - 'Y' 800mm - 'Z' 500mm - 'B' 360,000 x 0.001deg
- Axis speed feed range 'X'-'Y'-'Z' upto 60m / min
- Rapid traverse upto 60m /min
- Rapid traverse rate 'B' Axis 100
- Tool holder'HSK-A63/E63' with coolant tube
- Max tool length: 300 mm
- Max tool diameter fully tooled: 70 mm
- Max tool diameter free locations: 125 mm
- Max tool weight: 8 kg
- Electrics 400v 3 phase 50Hz 70 Kw Max
- Machine foot print: 5.5 x 2 x 4.2m,
- Machine weight: 10300 kg. hrs run 24,078 & 20,274.
- Condition: Used

Location: UK

(For images, please see next pages)
