For Sale - M - 1805 - Lotion Pump Moulds Complete Set

Specification

Reference Numbers

M - 1805

Product

Lotion Pump Moulds Complete Set

Product Details

On sale are the following moulds. We are shifting our business focus to pharmaceutical industry and hence wish to sell the entire set of moulds.
1) Item Name:- HEAD
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X16
Molding Material:- PP
Molding cycle time(s):- 28
Injection System:- Cold runner side gate
Mould Life:- 1000K
Surface Requirement:- PI-B3/TBD
Product Size (mm):- 47.13X21.63X21
Die Size(mm):- 680X850X436
Machine Tonnage:- 220

2) Item Name:- CAP
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X16
Molding Material:- PP
Molding cycle time(s):- 25
Injection System:- Cold runner sub gate
Mould Life:- 1000K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- F31.35X19(28/410)
Die Size(mm):- 400X550X500
Machine Tonnage:- 180
Remarks:- automatic unscreing+stripper

3) Item Name:- Housing
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X32
Molding Material:- PP
Molding cycle time(s):- 28
Injection System:- Cold runner sub gate
Mould Life:- 1000K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- Ö24.85X68.43
Die Size(mm):- 400X500X391
Machine Tonnage:- 100

4) Item Name:- Lock
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X16
Molding Material:- PP
Molding cycle time(s):- 25
Injection System:- Cold runner side gate
Mould Life:- 1000K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- F20.2X16.4
Die Size(mm):- 00X550X500
Machine Tonnage:- 150
Remarks:- automatic unscreing+stripper

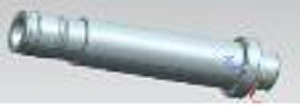

5) Item Name:- ROD
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X32
Molding Material:- PP
Molding cycle time(s):- 20
Injection System:- Cold runner side gate
Mould Life:- 1000K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- F10.4X24
Die Size(mm):- 350X450X351
Machine Tonnage:- 100

6) Item Name:- Valve
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X32
Molding Material:- PP
Molding cycle time(s):- 24
Injection System:- Cold runner side gate
Mould Life:- 1000K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- F10.1X36.2
Die Size(mm):- 500X500X426
Machine Tonnage:- 180
Remarks:- 4 Slider

7) Item Name:- Piston
Cavity Material:- 718H
Core Material:- 738H
Cavities:- 1X32
Molding Material:- LDPE
Molding cycle time(s):- 18
Injection System:- Cold runner side gate
Mould Life:- 1000 K
Surface Requirement:- SPI-B3/TBD
Product Size (mm):- F13.2X9.9
Die Size(mm):- 50X450X331
Machine Tonnage:- 100
