For Sale - PCM - 3384 - Cast Film Line

Specification

Reference Numbers

PCM - 3384

Product

Cast Film Line

Product Details

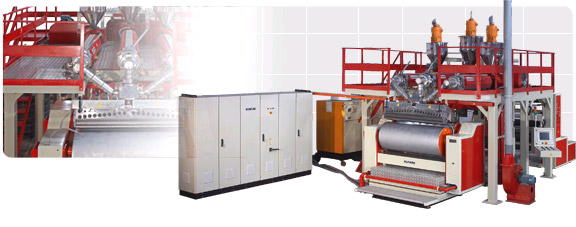

Konark Plastomech Cast Film Line:
- Material processed: LDPE / LLDPE
- Melt capacity: 70 Kg/hr to 300 kg/hr
- Layflat width: 600 mm to 2000 mm

Features:
- 2 layer / 3 layer options
- Nitrided screw and barrel made out from special intro alloy steel for long life and trouble free operations
- Manually operated lever type screen changer
- Uniquely designed coat hanger type 'T' die
- Specially designed 3 layer feed block unit
- MAT / mirror finish cast chill roll
- Single chamber vacuum box
- Film oscillation unit
- In-line trim grinding and force feeder assembly
- Banana roller assembly for anti creasing
- Semi and fully automatic surface winder
- AC inverter in line with AC motor with synchronization

Optional:
- Bata gauge thickness control with infrared sensor
- Edge pinning device
- Automatic winder with line control unit with PLC and HMI touch screen
- Gravimetric dosing unit
- Hydraulic screen changer

Application:
- Stretch film
- Cling film
- Masking film

(For images, please see next pages)

For More Details Contact:
Konark Plastomech Pvt. Ltd.
Mr. Jaymin Pithwa
Tel.: +91-79-2289 1670
Mobile: +919898068273
E-mail: sales@konarkplastomech.com
Web: www.konarkplastomech.com
