For Sale - PCM - 4017 - Magnum Neo Injection Molding Machines

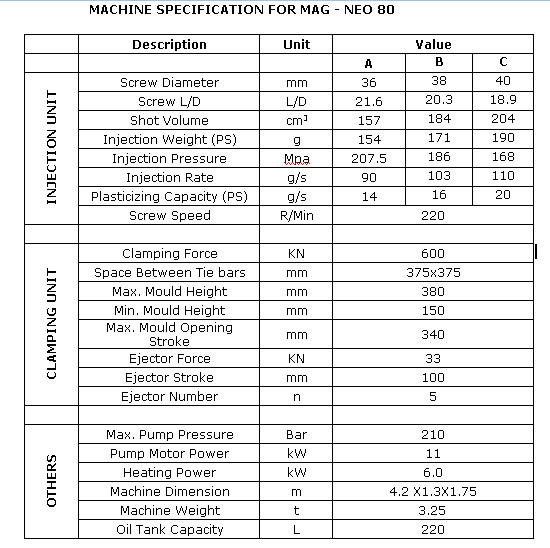

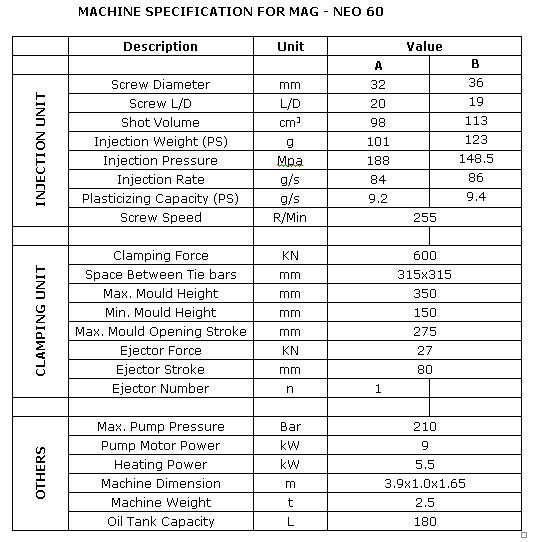

Specification

Reference Numbers

PCM - 4017

Product

Magnum Neo Injection Molding Machines

Product Details

Neo Series - Standard Machines:
Neo series machines come with all basic configuration, standard features and a Fixed Displacement pump.

This machine is capable of performing all functions found in an Expensive Injection Moulding Machine.

Neo Star Series - Machine with AC Drive:
Neo Star series machine is a development on the Neo series and is fitted additionally with an A.C. Drive/Variable Frequency Drive. The controller generates a analogue signal derived through a mathematical calculation between the set Pressure and Flow parameters to the Drive which controls the RPM of the Special Induction Motor based on function performed. Thereby bringing about saving in power consumed when compared to the Neo series.

It is an inexpensive and maintenance free option compared to Variable Displacement pump which is not very suitable for Indian Shop floor condition.

(For more details and images, please see next pages)

For More Details Contact:
Magnum Machine & Tools Pvt. Ltd., Kolkata
Mr. Ankit Pansari, Mr. Devendra Surana
Mobile: +91-9830872006
Tel.:+91-33-2403 7963/64
Email: apansari@magnumgroup.in, dsurana@magnumgroup.in
