For Sale - PCM - 4032 - SW-MB Series Automatic Multiple Cylinders Injection Moulding Machine

Specification

Reference Numbers

PCM - 4032

Product

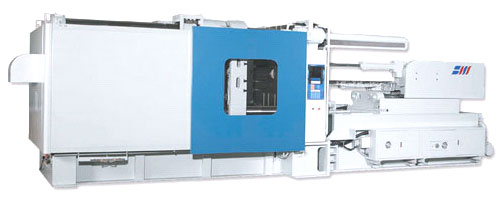

SW-MB Series Automatic Multiple Cylinders Injection Moulding Machine

Product Details

Model: SW-850MB ~ SW-2300MB

We offer Shinewell Injection Moulding Machines. Adhering to set industry standards, these machines are manufactured using quality approved raw material and components.

Shinewell owns many experienced and skillful mechanists of injection moulders and electronic system, who have abundant know-how in R & D, machining, assembly, testing and troubleshooting.

Features:
- SW-MB series particularly focuses on customers using middle and large model machineries, ranging from 400 tons to 2300 tons clamping force.
- Instead of equipping double toggle mechanism, MB series uses four locking mechanisms to place exact position of moving platen and meanwhile generates clamping force by four hydraulic cylinders.
- The design of multiple cylinders could reduce total machinery length, as well as provide more than twice mold opening stroke in contract with toggle injection machine.
- MB series is the most appropriate model for producing longer or deeper articles.
- New controller of MB series has 10.4 inches TFT-LCD monitor with 16.5 million colors offering clear graphic display, particularly appropriate for a long-run use by operator.
- Possesses several language modes that could be switched immediately to support personnel of different regions.
- It installs many technical applications, such as data-printing, USB port, Ethernet (optional) and touch panel (optional) to be run more efficiently by operators.

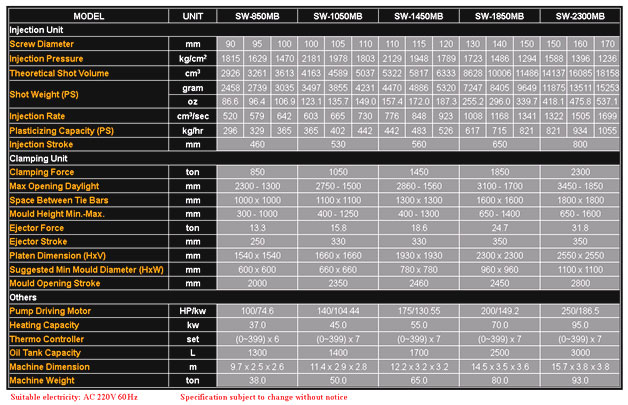

(For specification and image, please see next pages)

For More Details Contact:
Associated Technocrats Pvt. Ltd.
Mr. Sanjeev Verma
Mobile: 09818912000
Email: atpl@atplonline.com, info@atplonline.com
