For Sale - PCM - 4810 - ABA SE3F Type Three Layer Blown Film Plant

Specification

Reference Numbers

PCM - 4810

Product

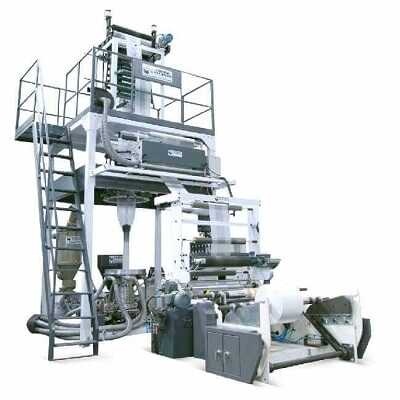

ABA SE3F Type Three Layer Blown Film Plant

Product Details

Final Product:- HM / HDPE / LDPE / LLDPE
Material Used:- HM, HDPE, LDPE, LLDPE, CACO3 Virgin Raw Material
Output Range:- 90 - 100 Kg/Hr (Depends On Extrusder's Size)
Film Layer:- Three Layer
Screw Diameter:- 35 / 45 MM (Customized)
Screw L/D:- 30:1 (Customized)
Layflat Width:- 300 - 800 MM
Micron Thickness:- 20 - 100(80-400)

Optional Devices:
Twin Loader With Dryer,
Corona Treater, Extra Die,
Water Chiller,
Heat Exchanger Fully Automatic Winder,
Gravimetric Dosing System / EPC,
Embossing Roll

Models:-
1) ABA SE3F 750
Screw Diameter : 35/45 mm
Layflat Width : 300 - 650 mm
Max. Output : 90-100 kg/hr
Thickness : 20-100 mm

2) ABA SE3F 900 OPTION-1
Screw Diameter : 35/45 mm
Layflat Width : 450-800 mm
Max. Output : 90-100 kg/hr
Thickness : 20-100 mm

3) ABA SE3F 900 OPTION-2
Screw Diameter : 45/45 mm
Layflat Width : 450-800 mm
Max. Output : 90-100 kg/hr
Thickness : 20-100 mm

For More Details Contact:
Shubham Extrusion Technik Pvt. Ltd.
Mr. Kartik Dave
Mobile No:07573016126
Email ID: shubham.extrusion1997@gmail.com
