For Sale - PCM - 4811 - ABA SE3F Type Three Layer Blown Film Plant

Specification

Reference Numbers

PCM - 4811

Product

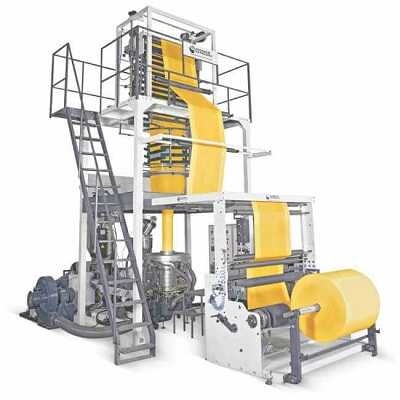

ABA SE3F Type Three Layer Blown Film Plant

Product Details

Final Product:- HM / HDPE / LDPE / LLDPE
Material Used:-HM, HDPE, LDPE, LLDPE, CACO3 Virgin Raw Material
Output Range:- 120 - 125 Kg/Hr (Depends On Extrusder's Size)
Film Layer:-Three Layer
Screw Diameter:- 45 / 55 MM (Customized)
Screw L/D:- 30:1 (Customized)
Layflat Width:- 550 - 1250 MM
Micron Thickness:- 20 - 120(80-400)

Optional Devices:
Twin Loader With Dryer,
Corona Treater, Extra Die,
Water Chiller,
Heat Exchanger Fully Automatic Winder,
Gravimetric Dosing System / EPC, Embossing Roll

Models:-
1)ABA SE3F 1200-45/55
Screw Diameter : 45/55 mm
Layflat Width : 550-1050 mm
Max. Output : 120-125 kg/hr
Thickness : 20-120 mm

2) ABA SE3F 1350-45/55
Screw Diameter : 45/55 mm
Layflat Width : 750-1250 mm
Max. Output : 120-125 kg/hr
Thickness : 20-120 mm

For More Details Contact:
Shubham Extrusion Technik Pvt. Ltd.
Mr. Kartik Dave
Mobile No:07573016126
Email ID: shubham.extrusion1997@gmail.com
