For Sale - PCM - 4817 - Monolayer Maxima Blown Film Extrusion Plant

Specification

Reference Numbers

PCM - 4817

Product

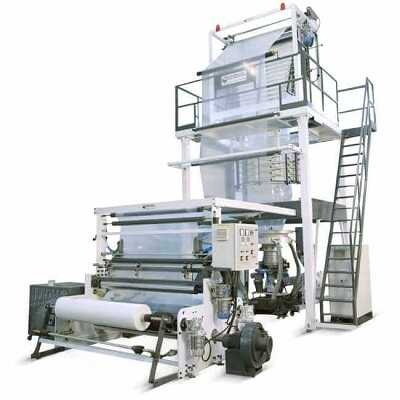

Monolayer Maxima Blown Film Extrusion Plant

Product Details

Final Product:- HM / HDPE / LDPE / LLDPE
Material Used:- HM, HDPE, LDPE, LLDPE Virgin Raw Material
Output Range:- 85 - 130 Kg/Hr (Depends On Extruder's Size)
Film Layer:- Single Layer
Screw Diameter:- 55G / 65G MM (Customized)
Screw L/D:- 30:1 (Customized)
Layflat Width:- 550 - 1500 MM
Micron Thickness:- 20 - 150

Optional Devices:
Hopper Loader,
Hopper Loader With Dryer,
Corona Treater,
Air Shaft Lever Type Manual Screen Changer,
Auto Winder, Trim Suction Blower,
Two Station Surface Winder Heat Exchanger,
Web Aligner, Water Chiller

Models:-
1) MAXIMA 1255
Screw Diameter : 55G mm
Layflat Width : 550-1100 mm
Max. Output : 85-90 kg/hr
Thickness : 20-100 mm

2) MAXIMA 1365
Screw Diameter : 65G mm
Layflat Width : 550-1250 mm
Max. Output : 120-125 kg/hr
Thickness : 20-120 mm

3) MAXIMA 1665
Screw Diameter : 65G mm
Layflat Width : 550-1500 mm
Max. Output : 125-130 kg/hr
Thickness : 20-150 mm
