For Sale - PTP - 2084 - Three Side Seal Pouch Making Machine


Reference Numbers

PTP - 2084


Three Side Seal Pouch Making Machine


XL Plastics, India

Product Details

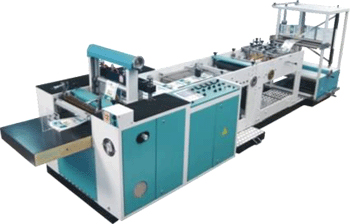

XL Plastics Delta Series Models: SSP 350 Delta / SSP 450 Delta
- High speed up to 150 strokes/min
- Servo motor for indexing and accuracy
- Microprocessor controlled with digital display
- Keyboard setting for speed, size and count
- Backlit display for operating parameters
- Photocell control to convert printed film
- Vertical unwind stand
- Two continuous lateral sealing jaws
- One set cross sealing jaws
- User friendly single control panel

Advantage: Machines manufactured by XL Plastics are designed for continuous duty and maintenance free operation. Some of these standard features on all the machines not only make them more reliable but also efficient and operator friendly.

- Fully assembled and pre wired: The machine is shipped in fully assembled and pre wired condition. It comprises of an unwind stand with continuous folder and sealing section, draw rolls, dancing rollers, photo cell unit with synchronizer, cross sealing, cutting and stacking table.

- AC inverter drives: The main motor and draw motor are both AC, with inverter drives for speed control.

- PID temperature controller: It maintains accurate sealer temperature to give consistent quality of sealing.

- Print registration photocell: The best quality Japanese/European photocells are used to give accurate print registration.

(For more details and images, please see next pages)
