Reference NumbersPTP - 3213

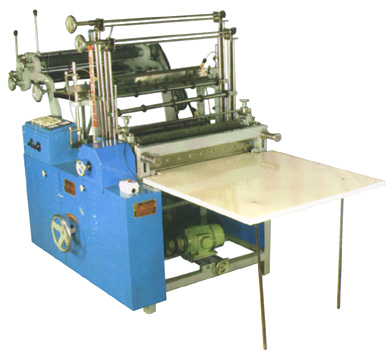

ProductManually Operated Button Sealing and Cutting Machine
- Suitable for LDPE, HM-HDPE, PP and printed films.
- For all types of grocery bags and carry bags
- Main AC frequency motor
- Unwinder with variable pulley
- Straight sealing without any spot
- Two way sealer for grocery bags
- Shear cut by scissors action
- Cutting of bags by graded cutters
- Easily operated to all operators
- Table for stacking of bags
- Newly design model for double decker machine
- Control board having sunvic as well as parameters controlling heat to sealers
- Size of machine: 24" to 32"
- Sealing width capacity: 4" - 22" to 4" - 30"
- Maximum draw length: 48"
- Speed (strokes per minute): 30 to 65
- Maximum roll diameter: 32"
- Heater (single decker): 1 KW
- Motor: 1 HP
- Weight (approx.): 450 kgs. to 600 kgs.
- Machine area in foots (LxWxH): 8 x 4 x 4.5 to 8.5 x 5 x 4.5
(For picture, please see next page)
