For Sale - PTP - 3322 - Canti Lever Differential Slitter Rewinder Model Accusplice


Reference Numbers

PTP - 3322

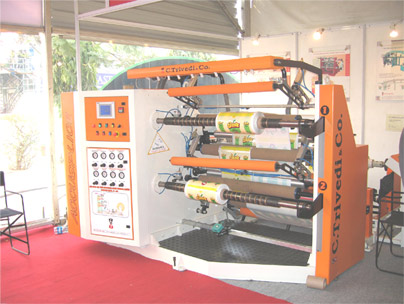

Canti Lever Differential Slitter Rewinder Model Accusplice


C. Trivedi & Co., India

Product Details

The accusplice duplex shaft slitter rewinder is a Canti lever type which incorporates a range of superior design feature that ensure the highest possible quality for the final split roll Independent rewind tension control through non contact ultra sonic techniques for diameter measurement and unique core lock for differential slip at running speed.
The design incorporate the three motor control system & unwind pneumatic brake with load cell feed brake Digital Edge/line guiding to achieve high speed correction.

Airshaft for 76mm core. At unwind with safety chuck max. reel weight 1000kg. Imported pneumatic tension control with load cell.

Slitting units:
Type of slitting: Razor in groove/circular rotary slitting system. One full width capacity grooved roller.
Trim removal system: 2 HP blower with full width pipe for trimming along with a trim Injector unit. Quick and easy system for change over from one slitting mode to another and from one slit width to another.

Nip unit:
One full width capacity hard chrome plated steel roller of 150mm diameter. One full width capacity rubber roller of 150 mm diameter. Pressure is pneumatically applied from the operation side of the machine.

Type of rewinding: Duplex cantilever differential winding with pneumatic pressure to maintain slip edge of rewind roll through digital E/P converter with indicator and ultra-sonic sensor to maintain rewind diameter. Quick lock unit for rewinding \ pneumatically controlled lay on roller operator friendly remote control panel provided at rewind for electrical and pneumatic system.

- Max. working width: 800 / 1600
- Unwind diameter: 1000 mm
- Rewind diameter: 450 mm
- Min slitting width: 50 mm
- Machine Speed: 200/350 meter per minute

- Circular knife attachment.
- Wheel away trolley for finish roll.
- P. L.C base single point access and control system.
- Differential rewind shaft less unwind

(For picture, please see next page)
