Reference NumbersPTP - 4090
ProductFrankische Corrugator Model: FDC 250 - 48 and Moulds
Model: FDC 250 - 48
- Supply also includes dies and cooling
mandrels for diameters
- 90 (94) mm i.d.
- 100 mm i.d.
- 125 mm i.d.
- 150 mm i.d.

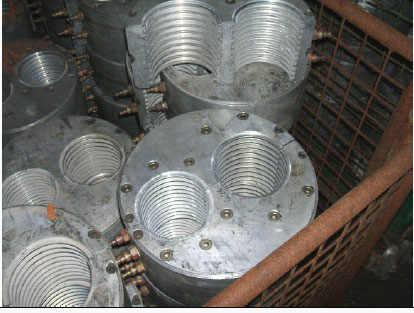

- Mould block inserts. Two diameters in 1 insert
- 90 (94) mm and 100 mm, both
- The corrugator has an elevation adjustment to set the centering line for each diameter.
Each set of block consist of 48 pairs.
- Mould Block inserts for 125 mm I'd.
- All blocks are in excellent condition and stored properly in separate cages for each dimension
- This is not a vacuum corrugator.
- Installing vacuum could boost output by at least 20 %.
150 mm - 320 - 360 kgs/hr
125 mm - 265 - 290 KG per
100 mm - 216 - 230 KG per
94 mm - 195 KG per
- The machine and all moulds are in good condition
Year of manufacture 1995
Located in Germany
(For images, please see next pages)
