For Sale - PNE - 2931 - M-6250M - Semi Automatic 6 Colour Dry Offset Printing Machine

Specification

Reference Numbers

PNE - 2931

Product

M-6250M - Semi Automatic 6 Colour Dry Offset Printing Machine

Manufacturer

Hyden Packaging (Pvt.) Ltd., India

Product Details

Hyden's M-6250M is a 6 colour Dry Offset printing machine for decoration of disposable plastics containers used for food and beverage packaging. Capable of vivid 6 colour decoration on injection molded as well as thermoformed plastics containers, this machine is built with a number of operational features that makes it convenient for the operator to handle a demanding 6 colour job. Designed for high speed printing this press is capable of taking on large production runs.

The M-6250M is a semi-automatic press that keeps it easy to operate and low on electrical power and floor area. The press can also be offered in the Signature Series version for fully automatic operation. This machine has the proven Magicure UV-OMC curing system that cures printed containers on their mandrels prior to ejection. A number of optional features allow this machine to be configured for enhanced operational features and requirements.

A quick change-over time, electronic ink management, centralized automatic lubrication and a sturdy geared drive system are a few of the standard features of this machine. Optional features allow for no cup detection and shut-down, corona or flame treatment for PP containers, 2 blanket printing system for large print circumferences and simple re-stacking of printed containers. This allows the press to be configured to individual requirements.

The M-6250M is built for continuous high production runs and will give years of reliable service requiring only simple and basic maintenance. This is because our machine are designed and manufactured to exacting specifications and component standardization. This also makes any maintenance convenient and with least down time. The machine control system is manufactured keeping specialized electronics at a minimum there by eliminating the need of specialized maintenance. All these aspects are towards giving an optimum efficiency from that press that will enhance your trade. We will be happy for you to join our large base of satisfied customers.

Features:
- Automatic container feeding into the press
- Ultra violet on-mandrel curing system
- Electronic ink release management

Specifications:
- Press speed (Containers / min.): 250
- Offset unit: 6 colour modular
- Max. container diameter (mm): 160 (Rim.)
- Max. container taper: 7 Degree
- Max. container depth (mm): 150
- Print length (mm) - 2 blanket / 4 blanket: 375 / 475
- Electrical power at 440 volts 3 ph.: 11.25 KW
- Air requirements at 6 kg/cm2: 300 lpm
- Floor area (L x W x H) (mm): 3000 x 3000 x 2500

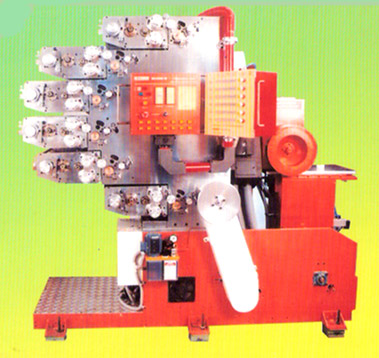

(For picture, please see next page)
