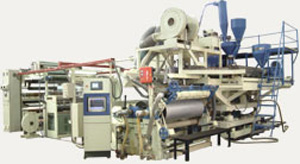

Multilayer Cast Film Line

Specifications:
Maximum Out Put (kg/hr) 400 - 450
Extruder I
Screw Dia (mm) 120
L/D Ratio 30:1
Main Drive (KW DC) : 110
Screen Changer Hydraulic
Extruder II & III
Screw Dia (mm) 70
L/D Ratio 30:1
Main Drive (KW DC) 30 x 2 Nos.
Screen Changer Hydraulic
Feed Block 3 Layer
T Die Size (mm) 1950
Useful Width (mm) 1650
Film Thickness (Microns) 15 150
Cast Roll (D X L ) mm 500 X 2100
Line Speed (mm) 50 150
Gas Suction System Provided
Edge Pinning Device Provided
Beta Gauge Provided
Film Oscillation System Provided
Corona Treater Provided
Surface Winder Provided
Total Connected Load (KW.) 377
Dimensions (LxWxH) in mtrs 12x8.8x4.8
