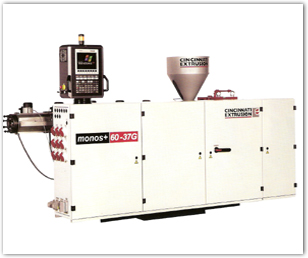

SINGLE SCREW EXTRUDER MONOS+ 37 D (45, 60, 75, 90, 120)
 |
Smooth pipe |
|
Solid pipe |
|
Corrugated pipe |
Five sizes cover warranty output ranges from 250 to 1,700 kg/h. With the new high performance extruder monos+ a 40% increase
in performance compared to the monos can be achieved. monos+ extruders are designed for PE 80 and PE 100 high performance
extrusion; they are also perfectly suited for corrugated pipe production, and in particular for processing PP and PE.
Monos+ extruders:
|
Optimized for commodity plastics |
|
Maintenance free, energy-efficient AC motor as standard |
|
Long service life |
|
Easy handling |
|
Maximum performance |
|
 |
| ................................................................................................................................................................................... |

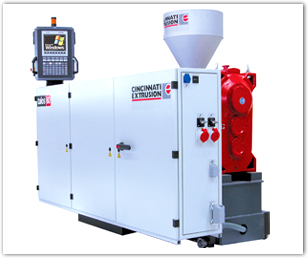

SINGLE SCREW EXTRUDER TALOS (45, 60, 75, 90, 120)
The universal extruder series talos is competitively priced and flexible in application, with warranty outputs ranging from
270 to 1,100 kg/h (for PE 80 & PE 100), from 180 to 600 kg/h (for PP-R) and from 200 to 800 kg/h (for PP-H). It is ideal for
processors who are looking for a favorably priced extruder model in proven Cincinnati quality including the process scope and
application technology support provided by Cincinnati . The talos can optionally be fitted with relay (discrete) control systems.
Talos extruders:
|
Extremely robust |
|
Flexible in application |
|
Easy to handle |
|
Budget-priced |
|
Suitable for commodity plastics and engineering polymers |
|
 |
| ................................................................................................................................................................................... |

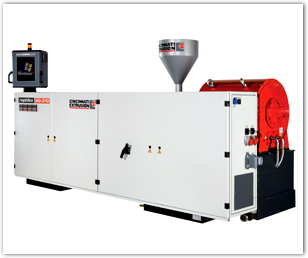

SINGLE SCREW EXTRUDER RAPIDEX 60, 90
PE large diameter pipes
Corrugated pipes
Gas pipes
Advancing into new output dimensions
Thanks to the latest technical developments, Rapidex high-speed extruders have made it possible for the first time to reach output
dimensions previously only possible with large extruder sizes. These "high speed" models operate with peripheral screw speeds
of over 1m/sec. extrusion. Rapidex extruders are recommended for applications requiring an output of more than 1,200 kg/h in PE
pipe extrusion, or high flexibility across a wide range of output levels. Warranty output for HDPE lies at 1,450 kg/h, the
maximum output at 1,600 kg/h.
The "Turbo" for high output
Rapidex extruders offer numerous advantages compared to conventional, slowly turning extruders, such as:
|
Smaller footprint |
|
Extremely simple handling for maintenance |
|
Substantially reduced sound level |
|
Excellent linearity even with extremely high screw speeds |
|
Excellent melt homogeneity |
|
Easy control of melt temperature |
|
Low costs for spare parts, since the plasticizing units used are much smaller than in conventional extruders |
|
Less heat loss through radiation |
|
Substantially higher degree of efficiency with torque motor technology and consequently lower operating costs |
|
 |
| ................................................................................................................................................................................... |

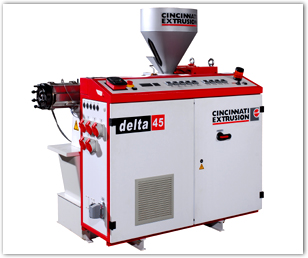

SINGLE SCREW EXTRUDER DELTA 45, 60
|
Technical profiles |
|
Tubes |
|
Small pipes |
The Delta single screw extruders were developed and designed especially for general profile and tube extrusion.
They offer output rates between 30 and 100 kg/h, depending on the material and extruder size. The Delta is comes
at an unbeatably favourable price: Delta 45-25B : USD 28,000- and Delta 60-25B : USD 34,000-
Delta extruders:
|
Wide range of materials (U-PVC, P-PVC, PP, PE, ABS) and applications |
|
High torque at low screw speeds |
|
Wide output range |
|
Synchronisation to co-extruder or downstream |
|
Easy, trouble-free operation |
|
Minimal space requirements |
|
 |
| ................................................................................................................................................................................... |

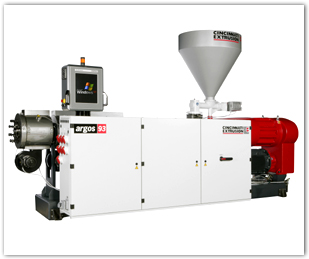

PARALLEL TWIN SCREW EXTRUDER ARGOS
|
Profiles (building: window & door, foamed, siding, cable ducts; coextruded) |
|
Pipes (pressure, corrugated, drainage & sewage, composite, foam core) |
|
Sheets (PVC – transparent or opaque, embossed and/or laminated) |
|
Pellets |
Twin screw extruders for supreme productivity
With the further improved Argos range, Cincinnati Extrusion offers parallel high-performance twin-screw extruders designed
for utmost reliability ensuring maximum productivity. Argos extruders can achieve higher outputs overall due to their ample
output range and the gentle plasticizing of PVC. Pipe (R), profile (P) and sheet (PL) versions of the Argos extruders are
available, with warranty outputs ranging from 230 to 700 kg/h for profiles, from 400 to 1,500 kg/h for pipes and from 1,100
to 1,700 kg/h for sheets.
Argos extruders:
|
Extremely robust |
|
Simple to operate |
|
Flexible in application |
|
Highly energy efficient |
|
 |
| ................................................................................................................................................................................... |

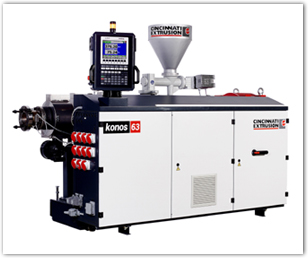

CONICAL TWIN SCREW EXTRUDER KONOS (38, 50, 63, 72)
|
Profiles |
|
Pipes |
|
Corrugated Pipes |
|
Co-extrusion |
A new dimension in conical twin-screw extruder design
Konos machines perform excellently at both high and low melt pressures, and also as coextruders. They are
the machines of choice for a wide range of applications, for example they are ideal for extruding pipes,
corrugated pipes, building sections and engineering profiles.
Masters in versatility: Konos extruders for all applications
|
Konos R for pipes with warranty outputs (U-PVC) from 100 to 500 kg/h |
|
Konos P for profiles with warranty outputs (U-PVC) from 65 to 270 kg/h |
|
Flexible in application |
|
Coextrusion (sizes: 38, 50, 63) |
Konos extruders:
|
Simple, safe, manifold in application |
|
Extremely flexible |
|
Unprecedented Price/Performance Ratio |
|
Exceptional pressure build-up and thrust-absorbing capability |
|
Smallest Footprint |
|
 |
| ................................................................................................................................................................................... |

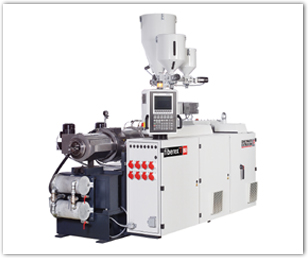

WPC (WOOD-PLASTIC COMPOSITE) EXTRUSION: FIBEREX (38, 58, 80, 92, 135)
|
Decking, railing, siding, fencing |
|
WPC sheet |
|
WPC co-extrusion |
|
Double-strand extrusion |
|
Compounding |
Fiberex extruders were developed and designed especially for the production of wood-plastic composites, with the
guiding principles of durability, function and flexibility in mind. The series comes in sizes from 38 to 135 and
covers an output range from 50 to 1,000 kg/h.
|
Based on proven counter rotating twin screw technology |
|
Engineered for WPC |
|
Wood-plastic composite screw library |
|
Modular dosing, feeding solutions for all materials |
|
Unique venting solutions |
|
Direct extrusion |
|
Compounding |
Partnership with the best system suppliers in the market
|
Complete lines |
|
World wide service, start-up and hand over |
|
WPC extrusion training |
|
Customized extruder solutions |
|
Manifold end products |
|
 |
|
