Kinetic Polymers

Company Profile

Kinetic Polymers is one of the leaders in providing solution to Static Electricity problems.
The 10 year old company has a manufacturing base in Hyderabad and offices in Pune, Kolkata & Chennai.
The company provides various instruments to measure Static Electricity which is a very big problem in the Plastic & Printing industries.
The company also offers a complete range of products which includes Antistatic Master batches, Films, Ionizers & Various other materials to be used to reduce or eliminate the Static electricity problem.
Static audit is also being conducted by this industries to give an appropriate solution to the Static electricity problem. roducts which

Products

Anti Static Products
Our high quality anti-static products help to prevent damage of sensitive electronic components from Electro Static Discharge. Our range of anti static products includes:

	Wristband
	Heel Strap
	Anti static Shoes
	Anti static Garments

Antistatic and Conductive Property Measuring Instruments offered by Kinetic Polymers
Antistatic and conductive polymeric materials finds a excellent growth in the present market. Various instruments are being offered by kinetic polymers to measure the values of antistatic materials.

	Surface Resistivitity Meter, with special probes
	Static Charge Meter

Uses of Surface resistivity meter

	To classify the material into Antistatic, Conductive or Insulator
	To optimizes the dousage of Antistatic master batch and Conductive compound.
	To compare the effectiness of various type Antistatic master batch and Conductive compound available in the market.
	To find the Surface & Volume Conductivity of various powder & liquid.

Surface Resistivity in Ohms
Materials are classified based on the surface resistively as shown in the table

Conductive	Static Dissipative	Antistatic	Insulator

10 ^ 1 – 10 ^ 5	10 ^ 6 – 10 ^ 8	10 ^ 9 – 10 ^ 11	10^12 – 10^16

Surface Resistivity (Ohm) (DIN 53482)	Half-Life period (S) (Honest meter)	Antistatic action

< 10^9	0 (no charge)	Excellent
10^9 to 10^10	1	Very Good
10^10 to 10^11	2 to 10	Good to Satisfactory
10^11 to 10^12	10 to 60	Moderate
> 10^12	> 60	Insufficient

Surface Resistivity Meter
The model SRM-02 surface resistivity meter is a portable and versatile instrument designed to accurately measure resistance between two points, surface to ground and surface resistivity in accordance with EOS/ESD association standard S-4.1. Range of measurement10^3--10^12 Ohms

Measurement Range:	<10E3 to>10E12 Ohms (or) Ohms/sq
Measurement Accuracy:	Half decade
Resolution:	One decade
Test Voltage:	100V
Indication:	Different Color LED's
Test actuation:	Press To Test
Power supply:	9 Volt Battery
Low battery:	Warning at Test voltage Of 80V(+/-1V)
Dimensions:	135 x70 x30mm
Weight:	App. 200 Gms(With Battery)
Calibration:	Recommended every 12 months
Warranty:	12 Months
Accessories included:	Surface to Ground cord
Optional:	Testing & Measuring Probes

Static Charge Meter
Static charges are measured by using static charge meter. An Antistatic material or an conductive material does not generate any static voltage on friction/ Rubbing, where as an normal polymer like LDPE or PP generate almost 3—5 kv.

	To locate the Static Charge present
	To finds the intensity of Static Charges
	To gets the polarity
	To classify material into Antistatic / Insulator
	Non contact type easy to operate & has a range of 0 – 10 KV
	During manufacturing of Antistatic / Conductive film, its very important to know,when exactly the required Antistatic / Conductive material has come and when to start winding operation in the roll form.

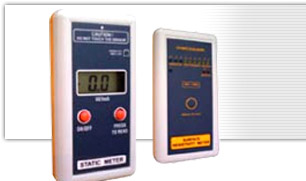

Static Meter
Reliable on-the-spot measurement of static charges ahs been easier than with the portable SCM-01. Hand-held, yet hightly accurate

	Is static present and on what surfaces, Materials or pepole?
	How much static?
	what is the polarity of the charges?

The insturment is ideal for use in such static sensitive environment as electronic component productions and assembly areas, clean rooms, computer, medical and R&D Laboratories, surgical rooms, medical device manufacturer, Printing press, Packing and production lines, etc.
Specifications

Measurement Range:	+/- 10KV At 1 Inch
Measurement Accuracy:	+/- 10%
Indication:	2 & 1/2 Digit LCD Display
Test actuation:	Press To read
Power supply:	9 Volt Battery
Low Battery:	Warning at 7.0 Volts
Calibration:	Recommended every 12 months
Dimensions:	135 x 70 x 30mm
Weight:	180 Gms
Warranty:	12 Months

ESD Safe Packaging Material
We offer following ESD safe packaging materials:

	Conductive Black Tubing & Bags			Conductive Cushioning Foam
	Conductive Grid Bag			Conductive Cushioning Foam
	Anti static Pink Tubing & Bags			Anti static Pink Bubble Roll
	Zipped & Open-top Shielding Bags			Shielding Bubble Bags
	Anti static Pink Foam			Anti static Pink Bags & Zip type bags
	Conductive Corrugated Box			Moisture Barrier Bags

Explosive Handling Product
We manufacture wide range of explosive handling products such as:

	Conductive Floorings			Conductive Brushes
	Conductive Foot Wear			Conductive Trays,Bins
	Conductive Waste Bins			Conductive Wheels
	Conductive Bottles

Conductive Material
Conductive materials are substances that conducts heat, light, sound, or electric charge. Allows electricity to freely move from one point to another point on the conductor. We offer following conductive materials:

	Conductive Rubber Floorings			Conductive Shoes
	Conductive Tray			Conductive Bowl
	Conductive Roller			Static Discharge Stand
	Conductive Waste Bin			Conductive Bag
	Conductive Spoon			Conductive Rod
	Conductive Spatula			Conductive Brush
	Conductive Bottle			Conductive Pin-insertion Foam
	Conductive Wheel

Anti Static Material
Anti static means a condition where static generation is inhibited during contact and separation with a different material. We offer following anti static room cleaning materials:

	ESD Shoes/ Slippers/ Over boots
	Shoe Cover
	Sticky Mat/ Tacky Mat
	Cap & Face Mask
	ESD Garments
	Clean Room Wipes

Illuminated Magnifiers
Illuminated Magnifiers have lens fitted with battery-operated lamp which illuminate an object during observation.

Soldering Tools
We offer following soldering and desoldering tools:

	Soldering Station: Soldering
	ESD Soldering Station: ESD(Electro Static Discharge
	ESD De soldering Station: Soldering
	Static Alarm
	SMD Rework Systems
	Soldering Iron
	De Soldering Tool

EMI Shielding Tools
EMI shields prohibit electromagnetic radiation from penetration. We offer following EMI shield items:

	EMI Sheet
	EMI Tube
	EMI Gasket
	Heat Sink Pad

VCI Rust Prevention Materials
Corrosion of metal products and parts reduces product life and can cost thousands of dollars. VCI Papers and VCI Poly Films produces a protective vapor layer which coats the products and prevents rust. Tests have shown that parts enclosed with VCI have been protected for 10 years and more.
VCI is available in following forms:

	PE Films
	Stretch Wrap VCI Films
	Shrink VCI Films

Master Batches
Master batches are used to modify the appearance and improve the performance of polymers such as LDPE, EVA, PP, PET, etc., various kinds of additives are incorporated into the plastic during the melt extrusion process. We offering following masterbatches.
