Manufacturer of Reprocessing Plant, HM-LDPE Blown Film Plant, Box Strapping Plant, Sutli Plant, Pipe Plant

Dudhaiya Industries is young, dynamic and respected manufacturer of various type of plastic processing machines like Reprocessing plant, HM-LDPE blown film plant, Box strapping plant, Sutli plant, Pipe plant. It also manufactures Grinders; High speed Mixers, Drum Mixers, Agglomerators for plastic film scrap of LD-HM/PP/BOPP tapes, etc.

Reprocess Plant
Dimension	Unit	Model	Model	Model	Model
Screw Diameter	Mm	75	90	100	110
Motor AC	Hp	15	20	25	30
Maximum	Kg/hr	50	65	80	100

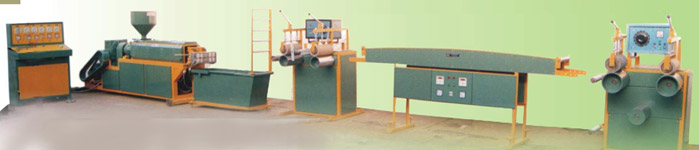

Sutli Plant
Description	Unit	Model DI 50	Model DI 65
Screw Diameter	MM	50	65
Take up Roll width	MM	300	400
Winder Station	No.	9	12
Main drive motor Ac	HP	10	15
Maximum output	Kg/hr	25	35

Agglomerator
Dimension	Unit	Model DI-15	Model DI-20	Model DI-25	Model DI-40
Nos. of Blades	Nos.	7	10	10	10
Electronic motor AC	Hp	15	20	25	40
Maximum output	Kg/hr	40	50	70	125

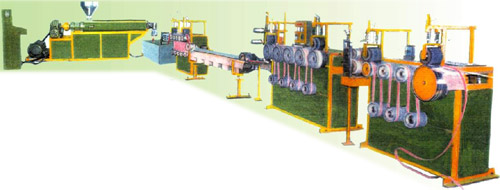

Box Strapping Machine
Description	Unit	Model DI-50	Model DI-65	Model DI-75
Screw Diameter	MM	50	65	75
Strapping width	MM	6 to 20	6 to 20	9 to 20
Winder station	No.	2	2	2
Main drive motor AC	HP	10	15	20
Maximum output	Kg/hr	25	35	45

Multipurpose Blown Film Plant
Description	Material	Main Motor HP	Maxi Output kg/hr HM-LD	Heating Zone	Nip Roll Size in Item	Tower Height Ft.
Screw 0 50	HM-LD	15	42-47	6	36”	12
Screw 0 55	HM-LD	20	50-55	6	40”	12
Screw 0 65	HM-LD	25	55-60	6	48”	14

HM-LD Plant
Description	Material	Main Motor HP	Maxi Output kg/hr HM-LD	Heating Zone	Nip Roll Size in Item	Tower Height Ft.
Screw 0 25	HM-LD	5	10-15	5	15”	9
Screw 0 32	HM-LD	7.5	22-26	5	24”	10
Screw 0 40	HM-LD	10	30-35	5	24”	10
Screw 0 45	HM-LD	15	35-40	5	30”	10

Scrap Grinder

Dimension	Unit	Model DI-9	Model DI-12	Model DI-15	Model DI-18
Length of Blades	Inch	9	12	15	18
Nos. of Blades	Nos.	5	5	5	5
Electronic Motor Ac	Hp	5	10	15	20
Maximum Output	Kg/hr	30	70	100	130
