For Sale - UM - 19857 - CMG 3 Layer Blown Film Extrusion Machine

Specification

Reference Numbers

UM - 19857

Product

CMG 3 Layer Blown Film Extrusion Machine

Year Of Manufacture

2002

Location

Europe

Product Details

Number of layers:- 3
Overhaul/renovation:- New thickness control and gravimetric dosing in 2012
Film structure ABC
Material:- LDPE,LLDPE,HDPE,PP
Film Width:- 1700 mm
Output:- Up to 450 kg/h
Extruder 1 Layer ref:- A
Screw diam:- 55/30

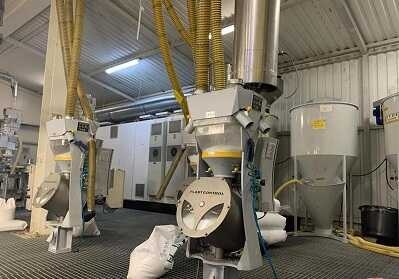

Description:- 3 component gravimetric system
Extruder 2 Layer ref:- B
Screw diam:- 75/30
Description:- 3 component gravimetric system
Extruder 3 Layer ref:- C
Screw diam:- 55/30
Description:- 3 component gravimetric system
Head description:- Automatic Magicflow ring Plastcontrol with IBC
Die diam:- 300 mm
Thickness controll system:- Plastcontrol

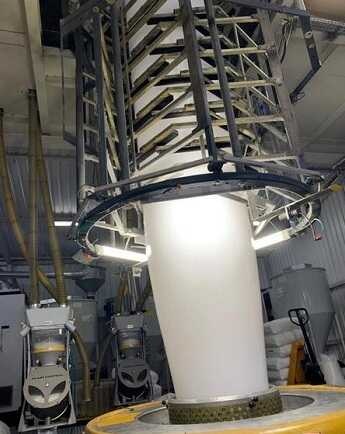

Bubble cage:- Yes, automatic
Take off unit:- Rotating
Corona treatment:- AFS
Web guide
Rewinder max reel diameter:- 1000
Additional information:- Materials to be processed: LLDPE/LDPE/LLD/HDPE/PP/Borstar/Metallocene/Borcene/other blends.
The line is at the moment producing industrial films and films for bag making. Air ring: Magic flow Plastcontrol C400; year 2012 Extruders: 55 mm (68 kW) + 75 mm (118 kW) + 55 mm (68 kW) L/D 30 Tower not included
