For Sale - UM - 18391 - Kalimata 3 Layer Blown Film Plant

Specification

Reference Numbers

UM - 18391

Product

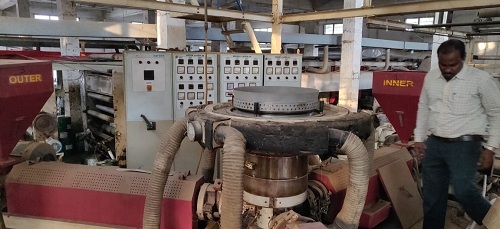

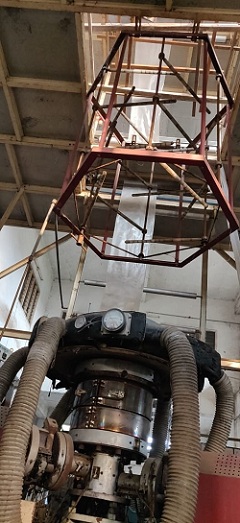

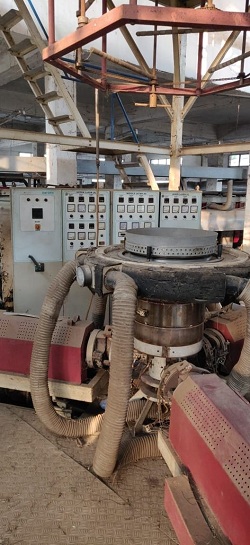

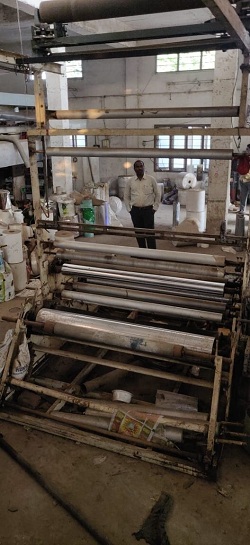

Kalimata 3 Layer Blown Film Plant

Year Of Manufacture

2008

Location

India

Product Details

Model:- K-3-65
Number of extruders:- 3
Screw diameter/type:- 65 mm diameter/barrier with distributive mixing head
Material of screw/barrel:- EN 41 B duly gas nitrided
Screw L/D Ratio:- 28:1
Main motor:- ABB make 30 HP AC-3 nos., with ABB make variable frequency drive
Gear box:- Shanti make helical with in-built bearing housing
Hopper:- 3 Nos. 75 kgs hoppers
Temperature zones & cooling:- 4 Zones(3- extruder, 1-adaptor) with blower cooling for zones 2 & 3 per extruder
Screen changer:- Semi automatic resettable Disc type screen changer will be provided
