For Sale - UM - 17633 - SML Lenzing Cast Film Extrusion Machine

Specification

Reference Numbers

UM - 17633

Product

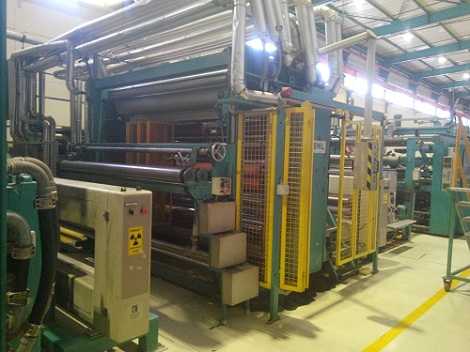

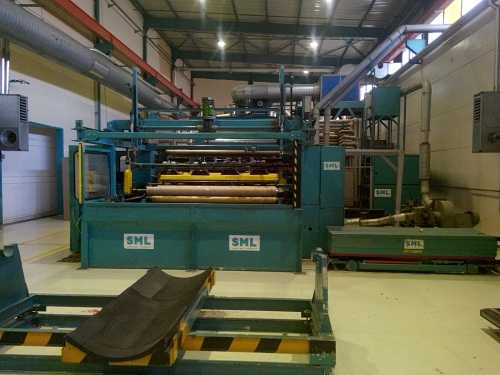

SML Lenzing Cast Film Extrusion Machine

Year Of Manufacture

1997

Location

Europe

Product Details

Annual capacity (mT/year):- 5000 t/year
Max winding width (mm):- 2400 mm
Extruder:-
Number of extruder:- 4
Main Extruder:- 1 * 150/33D (with melt pump)
Secondary Extruder:- 1 * 120/33D
Secondary Extruder:- 2 * 90/28D
Extruder Motor Type:- DC

Filter:-
Type:- Screen Belt Filter
Supplier:- Cloeren
Feed Block
Katman saysi:- 5 layers

Die:-
Supplier:- Cloeren
Genisilik:- 2850 mm
Vacuum Box:- 2 chambers

Chill Roll
Primary:- 1 * 800 mm diameter electro matt finished surface
Secondaries:- 2 * 400 mm diameter hard chromed plated
Capabilities:- Cooling Capability
Air Knife:- Frequency control

Thickness Measuring Unit
Supplier:- Eurotherm

Corona
Type:- 2 zone
Supplier:- Softal
Electrode Type:- 1 for each zone
Power:- 2 * 12,5 kW
Nip roll:- 1 nip roll

Winder
Max winding diameter (mm:- 980 mm
Winding type:- Gap and contact

Side Trimmer
Supplier:- Kongskilde

Recovery unit
Supplier:- Erema
capasity:- 130 kg/h

Slitter Machine
KAMPF:- 1997
Max rewind width:-2400 mm
Max slitter width (mm):- 360-1600 mm
Number of rewind Station:- 5

Max production speed (m/min):- 600 m/min
CPP,MOPP, BOPP,EVOH
Thickness:- 15-200 micron
