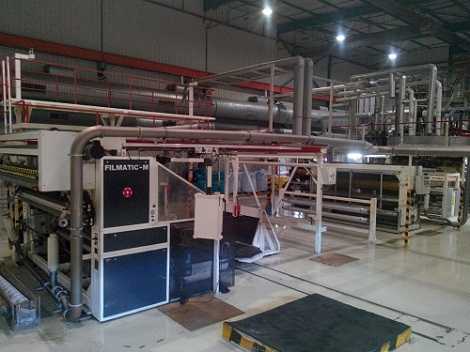

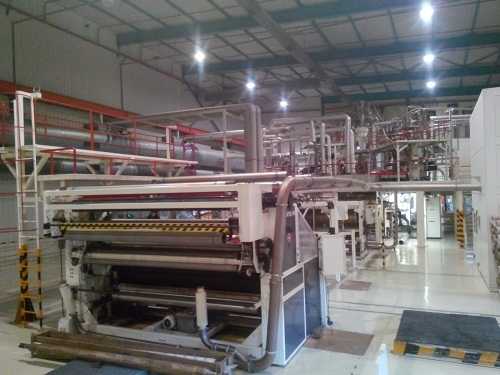

For Sale - UM - 17634 - Windmoller & Holscher Cast Film Extrusion Line

Specification

Reference Numbers

UM - 17634

Product

Windmoller & Holscher Cast Film Extrusion Line

Year Of Manufacture

2006

Location

Europe

Product Details

Annual capacity (mT/year):- 9840 t/year
Max winding width (mm):- 2700 mm
Extruder:-
Number of extruder:- 4
Main Extruder:- 1 * 150/30D (with melt pump)
Secondary Extruder:- 1 * 90/33D
Secondary Extruder:- 2 * 70/3RD
Extruder Motor Type:- DC

Filter:-
Tip:- changer
Supplier:- Cloeren
Feed Block
Katman saysi:- 5 layers

Die:-
Supplier:- Cloeren
Genisilik:- 30000 mm
Vacuum Box:- 2 chambers

Chill Roll
Primary:- 1 * 1000 mm diameter electro matt finished surface
Secondaries:- 2 * 400 mm diameter hard chromed plated
Capabilities:- Cooling Capability
Air Knife:- Frequency control

Thickness Measuring Unit
Supplier:- K Beta

Corona
Type:- 2 station
Supplier:- Softal
Electrode Type:- 1 for each zone
Power:- 2 * 12,5 kW
Nip roll:- 1 nip roll

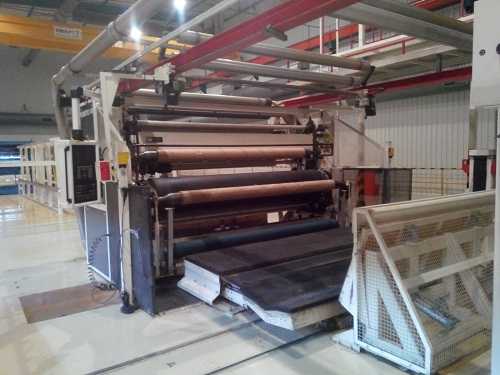

Winder
Max winding diameter (mm):- 1050 mm
Winding type:- Gap and contact

Side Trimmer
Supplier:- W & H
Recovery unit
Supplier:- Erema
capacity:- 180 kg/h

Slitter Machine
KAMPF:- 2006
Max slitter width:-3050 mm
Max slitter width (mm):- 180-3050 mm
Number of rewind Station:- 6

Max production speed (m/min):- 800 m/min
CPP,MOPP, BOPP,EVOH
Thickness:- 15-200 micron
