For Sale - UM - 18325 - 59" Wide Shanghai Jobbetter Co-Extrusion Sheet Line

Specification

Reference Numbers

UM - 18325

Product

59" Wide Shanghai Jobbetter Co-Extrusion Sheet Line

Year Of Manufacture

2012

Location

USA

Product Details

59" wide (1500 mm) Shanghai Jobbetter 2012 co-extrusion sheet line.

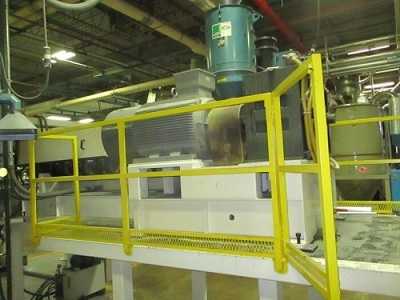

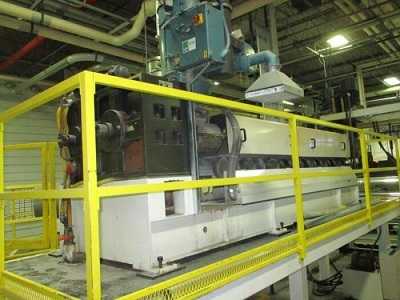

120 mm primary extruder
Model:- JBDD105.
33/1 L/D non-vented barrel driven by 110 kw AC motor with variable frequency drive.
Includes dual bolt screen changer and melt pump.

90 mm Shanghai Jobbetter 33/1 L/D co-extruder with dual bolt screen changer, 55 kw AC motor with variable frequency drive.
Has electrically heated air cooled barrel and melp pump.

54" flex lip sheet extrusion die

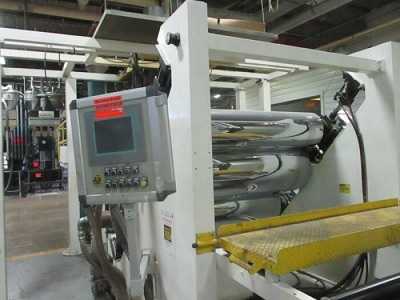

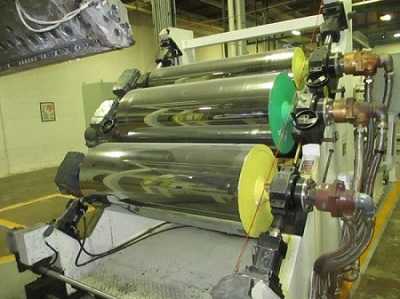

59" wide (600 x 1500) Shanghai Jobbetter inclined chill roll stack with individual roll drives.
Top roll is 12" diameter, middle and bottom rolls are 24" diameter x 59" face. Includes (4) Sterling temperature controllers, laminating station with dip coating, and pull roll station.

Approximately 50" wide turret winder for approximately 36" diameter rolls.
