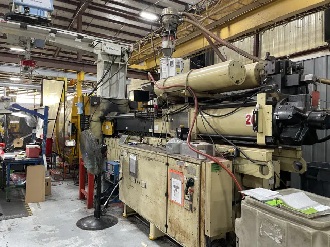

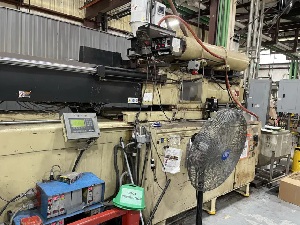

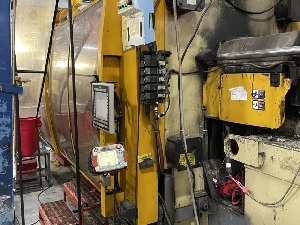

For Sale - UM - 22405 - Husky 660 Ton Injection Moulding Machine
Specification
Reference Numbers
UM - 22405Product
Husky 660 Ton Injection Moulding MachineYear Of Manufacture
1998Location
USAProduct Details
Clamping Force:-660 Tons
Screw Diameter:-100 mm
Shot Size:-129 Oz.
Hours:-29190
Tie Bar Spacing:-40.1" X 40.1"
Platen Size:-56.1" X 57.2"
Clamp Stroke:-38.3"
Daylight:-75.7"
Min/Max Mold Height:-9.8"/37.4"
Ejector Stroke:-5.9"
Max/Min Die Space:-55.5"/30", Removable Platen That Adds 6" To Make Min Die 24"
Includes:
Encore 12 Upgrade, G-Line Replacement Din Clamp Manifold, G-Line Replacement Din Power Manifold, Accumulator Tanks
Equipped With:
Hydraulic Valve Gate, Hydraulic Cores On B Side, Air Blow - 5 On Each Side, 2006 2 Arm Star Automation Robot Tw-1800 V-460
