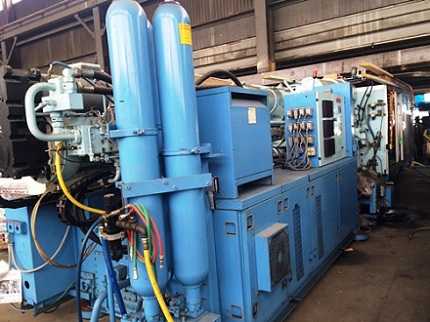

For Sale - UM - 17338 - Krauss Maffei 660 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 17338

Product

Krauss Maffei 660 Ton Injection Molding Machine

Year Of Manufacture

1999

Location

USA

Product Details

Shot Size: 77.29 oz.
Tie Bar Spacing: 39.37" x 39.37"
Platen Size: 57.08" x 60.23"
Daylight: 68.89"
Clamp Stroke: 45.27"
Mold Thickness: 23.62" min.
Equipped with:-
MC3F w/Color flat screen Control
Air Ejection (1) Valve on moving platen
Fixed & removable platens according to SPI
Centering ring at fixed platen 4"
Monitoring of rear position (limit switch) of the ejector at the mold in series w/machine ejector
Chrome plated tie bars
Level sensor for monitoring oil drip tray
Accumulator for increased injection capacity
Back pressure setting
Function to maintain pressure on core pull circuits via accumulator
Start up circuit
Quality monitoring package
Maintenance schedule according to machine load
PV - Closed loop control
Four flite ring check valve
Special voltage - 460V/60Hz w/o neutral phase
