For Sale - UM - 18464 - Super Master 600 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 18464

Product

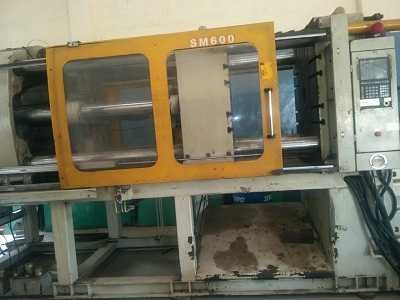

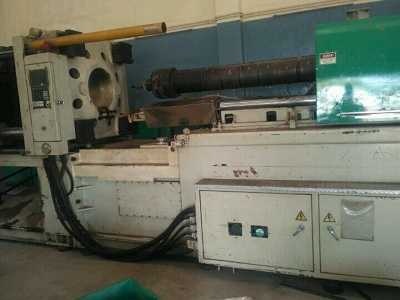

Super Master 600 Ton Injection Moulding Machine

Year Of Manufacture

2003

Location

Tamil Nadu

Product Details

Machine type:- SM 600
Shot weight:- 2.5 kg

Injection unit:-
Screw diameter:- 83 mm
Shot weight(PS):- 2117 oz
Shot weight(PS):- 74.8 oz
Injection pressure:- 1951 kgf/cm2
Injection rate:- 568 cm3/sec
Screw stroke:- 430 mm
Screw rotation:- 0~130 rpm
Injection speed:- 105 mm/sec

Clamping unit:-
Clamping force:- 600 tonf
Opening stroke:- 900 mm
Max. daylight:- 2000 mm
Mold height(min-max):- 350 ~ 1100
Space between tie bar:- 860 * 860 mm
Hydraulic ejector force:- 14 tonf
Hydraulic ejector stroke:- 250 mm

Power:-
Pump motor:- 75 (100 HP) kw
Heating capacity:- 31 kw
Max. system pressure:- 175 kgf/cm2
Oil tank capacity:- 1200 litre

General:-
Machine dimension(L*W*H):- 10.2*2.2*2.2 m
Machine weight (without oil):- 30000 kg
