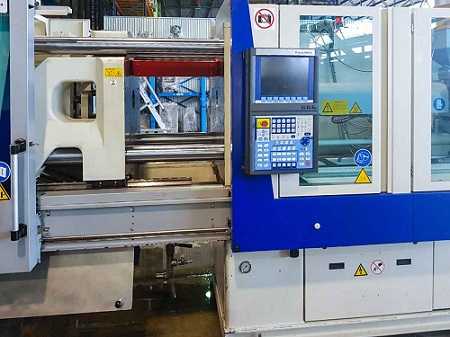

For Sale - UM - 17667 - Krauss Maffei 160 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 17667

Product

Krauss Maffei 160 Ton Injection Moulding Machine

Year Of Manufacture

2008

Location

Europe

Product Details

Screw diameter:- 45 mm
Shot weight max:- 278 g
Injection rate:- 477 cm³/s
Injection pressure:- 2.336 bar
Screw speed:- 458 rpm
Screw L/D ratio:- 26
Nozzle force max:- 30 mm / kN
Nozzle stroke max:- 450 mm
Clamping force:- 1.600 kN
Mould opening stroke max:- 450 mm
Mould height max:- 650 mm
Mould height min:- 400 mm
Daylight between platens max:- 1.100 mm
Distance between tie-bars h:- 520 mm
Distance between tie-bars v:- 520 mm
Platen size h:- 830 mm
Platen size v:- 800 mm
Ejector force:- 22 kN
Control type:- MC 5
Core pulls:- 2
Operating hours:- 36.000
Weight:- 11.500 kg
Dimensions (long x wide x high):- 6.300 x 1.600 x 2.150 mm
