For Sale - UM - 18398 - Krauss Maffei 250 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 18398

Product

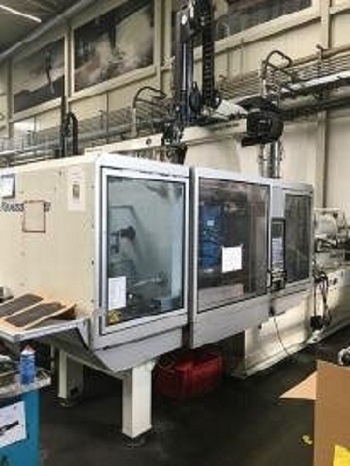

Krauss Maffei 250 Ton Injection Moulding Machine

Year Of Manufacture

2005

Location

Europe

Product Details

Type:- KM250-1900C2

4 x needle valve nozzle, hydraulic
1 x needle valve nozzle, pneumatic
1 x Air valve
Host computer interface
Krauss Maffei Robot (integrated)

Technical details
Screw size:- 70 mm
Injection shot weight in Polysterol:- 953 g
Clamping force:- 2500 kN

Injection unit
Screw size:- 70 mm
Max. swept volumne:- 1.047 cm³
Injection shot weight in Polysterol:- 953 g/PS
Injection pressure:- 1.778 bar

Clamping unit
Clamping force:- 250 t
Tie bar distance:- 710 x 630 mm
Mould hight min.:- 330 mm
Opening stroke:- 820 mm

Control:- MC-4
Microprocessor control

Equipment
Robot interface:- Ja
Core pull:- 3 x
Pump drive power:- 55 kW
Total connection power:- 85 kW
Total weight:- 16.000 kg
Dimension L x W x H:- 6,00 x 2,10 x 2,40 m
