For Sale - UM - 17648 - Arburg 500 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 17648

Product

Arburg 500 Ton Injection Molding Machine

Location

Europe

Product Details

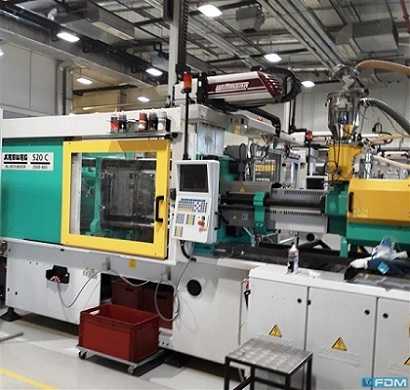

1) Screw size:45 mm
Injection shot weight in Polysterol:291 g/PS
Closing pressure:2000 kN
Daylight:520 x 520 mm
Opening stroke:max. 650 mm
Mould height - Max./min.:250 mm
Control:Selogica
Daylight between platens - max.:900 mm
Total power requirement:46,3 kW
Weight of the machine ca.:7,2 t
Dimensions of the machine ca.:5,50x2,10x2,20 m
Description
C version IV
LCD colour monitor, colour type
Selogica control unit
Technology step 2 servoregulated with 2 regulating pumps
Wear resistant plastification unit
Connection / electr. preparation for the installation of mould blow unit 1 core pull 1
Core pull 2
Interface for robot system (EUROMAP 67)
Interface for host computer for ALS
Interface for tempering unit
Interface for printer
6 electrical heating circuits for mould heating
Arburg equipment packages 1,2,3,5,6,7
Languages switcheable
Extension for pressure changeover
Piezo-charge amplifier
Interface for coloring/dosing unit
Position-regulated screw
Mould controlling through ejector platen safety (interface)
Incl. robot make Wittmann type W 721-0481,
With safety housing and conveyor belt
With substantial serial equipment

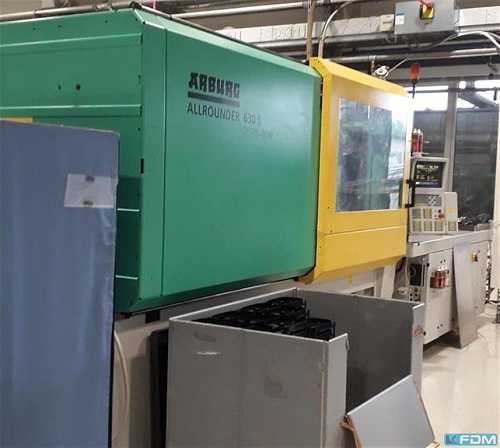

2) Screw size:50 mm
Injection shot weight in Polysterol:359 g/PS
Closing pressure:2500 kN
Core drawing:2 x
Control:Selogica
Daylight:630 x 630 mm
Opening stroke:600 mm
Mould height - Max./min.:300-700 mm
Daylight between platens - max.:900-1300 mm
Total power requirement:61,4 kW
Weight of the machine ca.:12,2 t
Description
Technology step 2 - servo-regulated with 2 reguatiing pumps
With highly wear resistant plastification unit
Increased power for heating circuits - 1-6 to each 3,6 kW
at 230 V and 16 A fuse
Electr. connection for pneumatic needle valve nozzle in mould
Clamping force increased by 10 %
Automatic mould height adjustment for adjusting different mould heights
Connection for mould blow unit 1
1st core pull
2nd core pull
Continuous oil circulation with additional pump
Interface for host computer for ALS
Interface for temperiing unit
Interface for printer
9 additional heating circuits
Languages switcheable
Control extension for pressure changeover channel 1
Through cavity pressure or temperature
Control extension for pressure changeover channel 2
Through cavity pressure or temperature
2 x charge amplifiers
Interface for coloring/dosing unit
4 free cooling circuits on the fixed mold platen
4 free cooling circuits on the moveable platen
Arburg equipment packages No.: 1,2,3,5,6,7
Position-regulated screw
Mould controlling by ejector platen safety (interface)
With substantial additional equipment

Machine is equipped with a robot Multilift H robot system, Horizontal takiing out of parts from the machine backside

version with B axis, weight: 5 kg

Total of gripper and parts) programmable via
Selogica machine control unit including pneumatic valve
Including C-axis

Z-axis, movable, drive servo-electric,
Positions programmable, stroke length 1000 mm

C-axis, pneumatic drive, rotary motion 0 to
90 ° C, end positions manually adjustable via stops

B-axis, pneumatic drive, 90 ° swivel for reduction
Thehe stroke of the Z-axis
With sprue pliers standard

Protective housing with electrically secured
Sliding door and conveyor L = 3000 mm
B = 800 mm storage height 1300 +/- 200 mm

X-axis drive pneumatic, end positions manual
Adjustable via stops. Stroke length 200 mm

Stroke extension of the Z-axis to 1200 mm

G axis (gripper stroke) Pneumatic drive, manual end positions
Adjustable via stops. Stroke length 50 mm

16 free programmable inputs

First vacuum equipment (Venturi principle)
Second vacuum equipment (Venturi principle)



This machine will be function tested in our company and after function testing it can be tested in our company.

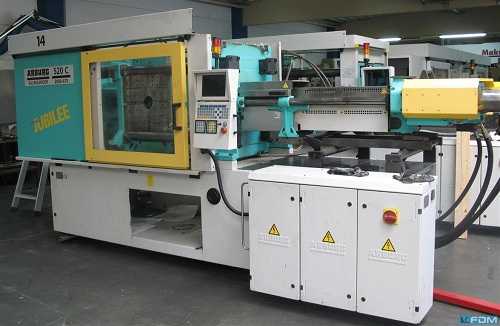

3) screw size:55 mm
injection shot weight in Polysterol:360 g/PS
closing pressure:2000 kN
daylight:520 x 520 mm
opening stroke:max. 650 mm
mould height - Max./min.:250 mm
control:Selogica
daylight between platens - max.:max. 900 mm
total power requirement:45,8 kW
weight of the machine ca.:6,7 t
dimensions of the machine ca.:5,40x2,00 x 2,20 m m
Description
CS version IV
- LCD control monitor, colour type
- technology step 2, - servoregulated with 2 regulating pumps
- with Selogica-control
- highly wear resistant plastification unit
- connection for mould blow unit 1
- core pull
- injection pressure increased by 10 % (to max. 2.500 bar,
value depends from the screw diameter)
- interface for robot according to EUROMAP 12
- interface for tempering unit
- interface for printer
- 3 electr. heating circuits for mould heating
- interface for colouring / dosing unit
- Arburg equipment packages 1,2,3,6,7
- with substantial serial equipment
This machine will be reconditioned in our company and can be tested after finishing in our company. This machine can be inspected at every time.
