For Sale - UM - 17643 - Arburg 100 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 17643

Product

Arburg 100 Ton Injection Molding Machine

Location

Europe

Product Details

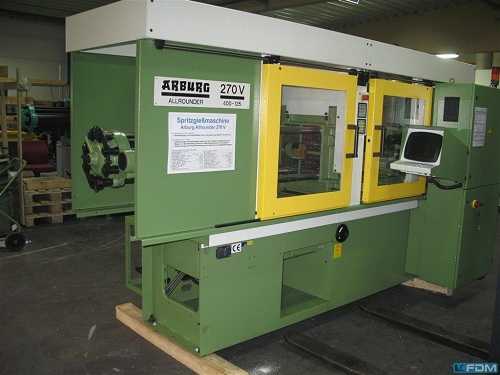

1) Screw size:30 mm
Injection shot weight in Polysterol:-65 g/PS
Closing pressure:400 kN
Daylight:270 x 270 mm
Opening stroke:350 mm
Mould height - Max./min.:200 mm
Control:- Selogica (1. Version)
Daylight between platens - max.:550 mm
Total power requirement:21 kW
Dimensions of the machine ca.:4,30x1,60x2,08 m
Description:-
Few operation hours - condition like new -
Wear reisistant plastification unit
Fully hydraulic clamping unit
With Vario system
Mould blow unit
Sorter unit
Interface for host computer
Interface for tempering unit
Piezo charge amplifier
Quality control
ALS host computer complete configuration
ASL-ARS AQS interface
Software for host computer
Hydraulic ejector with adjustable stroke
Screw decompression and open nozzle
With Selogica (1st version)
This machine will be function tested.

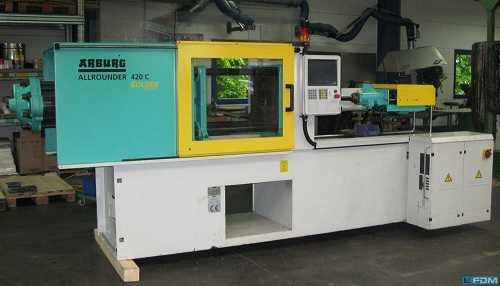

2) Screw size:35 mm
Injection shot weight in Polysterol:- 132 g/PS
Closing pressure:1000 kN
Daylight:420 x 420 mm
Opening stroke:500 mm
Mould height - Max./min.:250 mm
Control:- Selogica
Daylight between platens - max.:750 mm
Total power requirement:23,9 kW
Weight of the machine ca.:3,7 t
Dimensions of the machine ca.:4,20x1,65x2,00 m
Description
Version Golden Edition
With Selogica control
Highly wear resistant plastification unit
Hydraulic plant with 2 with servo-regulating pumps
Core pull
Connection for mould blow unit 1
Interface for handling according to Euromap 67
Operator authorization with chip-card according to Euromap 65
Temperature release till 450 degrease
Interface for printer
Interface for compact flash
1 additional heating circuit for nozzle
Interface for coloring unit
Interface for printer
With substantial serial equipment
This machine will be overhauled according to our checklist.
This machine can be tested in our company after overhauling.
