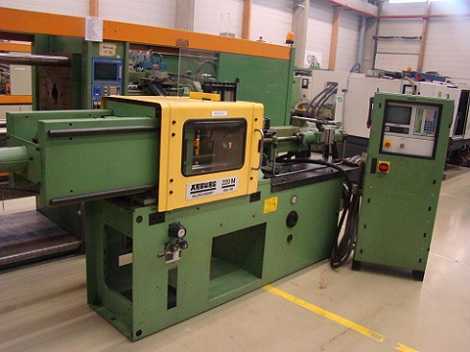

For Sale - UM - 17434 - Arburg 35 Ton Injection Molding Machine

Specification

Reference Numbers

UM - 17434

Product

Arburg 35 Ton Injection Molding Machine

Year Of Manufacture

1990

Location

Europe

Product Details

Clamping unit:-
Clamping force:350 kN
Mould opening force, max.: 22 kN
Size of mould platens (h x v): 346 mm x 346 mm
Distance between tie bars (h x v):221 mm x 221 mm
Mould opening stroke:275 mm
Mould height min.:200 mm
Max daylight:475 mm
Hydraulic ejector - stroke:100 mm
Ejector force forward/backward:20/12,3 kN

Injection unit:-
Screw diameter: 25 mm
Ls/D ratio: 20
Injection pressure: 1860 bar
Stroke volume: 49 ccm
Shot weight, PS: 40 g
Injection rate: 88 ccm/s
Injection stroke: 100 mm
Screw speed: 595 1/min
Nozzle pressure: 60 kN

Electric and Hydraulic Equipment:-
Nominal capacity of pump motor:11 kW
Installed heating capacity: 4,5 kW
Reservoir capacity: 160 ltr.

Dimensions and weights
Dimensions of the machine ca.: 3,3 m x 1,70 m x 1,92 m
Total machine weight:1500 kg

Accessories
Anti vibration pads
6-fold water battery

Additional information:- Robot interface
