For Sale - UM - 17955 - Arburg Injection Moulding Machines

Specification

Reference Numbers

UM - 17955

Product

Arburg Injection Moulding Machines

Location

Europe

Product Details

1) Screw size:25 mm
Injection shot weight in Poly sterol:- 54 g/PS
Closing pressure:1100 kN
Daylight:470 x 470 mm
Opening stroke:500 mm
Mould height - Max./min.:250 mm
Control:- Selogica
Daylight between platens - max.:750 mm
Total power requirement:64 kW

Description:-
Only about 8.953 automatic hours
Only about 13.233 pump hours
Selogica- control
With touch screen operation
Technology step 2 - with 2 servo regulating pumps
Wear resistant plastification unit
Connection/electr. preparation for the installation of mould blow unit 1
Pneumatic core pull 1
Electr. drive for 2nd core pull
Hydraulic operated safety gate
Side protection increased to safety
Interface according to euromap 70 for magnetic
Tool clamping systems
Interface for robot according to euromap 67
Interface for printer
Compact Flash and interface for USB
Operation authorization through Chip card according to euromap 65
6 electr. heating circuits for mould tempering with each 2 kW at
230 V and 10 A saftey
Cooling distribution with 4 free cooling circuits
With Arburg equipment packages number 1,2,3,5,6,7

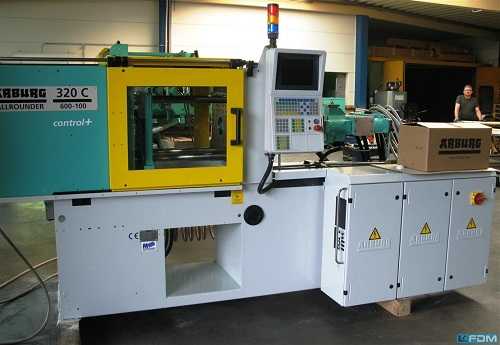

2) Screw size:25 mm
Injection shot weight in Poly sterol :45 g/PS
Closing pressure:600 kN
Daylight:320 x 320 mm
Opening stroke:350 mm
Mould height - Max./min.:200 mm
Control:- Selogica
Daylight between platens - max.:550 mm
Total power requirement:23,9 kW
Weight of the machine ca.:2,1 t

Description:-
CS version II
Highly wear resistant plastification unit
With Selogica control
Technology stage 2 - servo-regulated hydraulic plant with 2 regulating
pumps
Bigger holding pressure pump
Control +
Connection for mould blow unit 1
Connection for sorter unit
Interface for robot
Electr. and mechanical preparation for external handling
Interface for tempering unit
Interface for printer
Interface for PC-keyboard
1 additional heating circuit f. nozzle
Interface for container changer
Interface for colouring unit
Arburg equipment packages 1,2,3,5,6,7
Expansion of control for special signals
With substantial serial equipment
