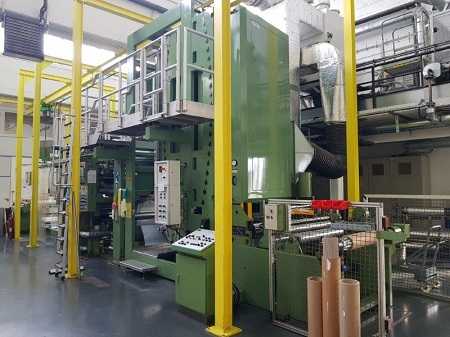

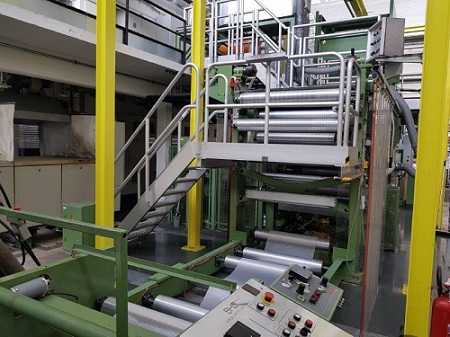

For Sale - UM - 17002 - BHS Wax Laminator / Hotmelt Coater

Specification

Reference Numbers

UM - 17002

Product

BHS Wax Laminator / Hotmelt Coater

Year Of Manufacture

1995

Location

Europe

Product Details

Type:- Combination

Duplex or triplex:- Duplex

Max. web width:- 1020 mm

Min. – Max. laminating/coating width:- 1000 mm

Max. mechanical speed:- 220 m/min

Material & Min – Max thickness:- Alu soft: 6,3 – 20 mu
Paper: 20 g/m 2 – 90 g/m 2
Unwind type (1):- Single

Max. unwind reel diameter (1):- 1000 mm

Unwind type (2):- Single

Max. unwind reel diameter (2):- 1000 mm

Rewind type:- Single

Max. rewind reel diameter:- 1000 mm

Including:- 1 station for wax coating/laminating
1 station for lacquering (SB or SF or hotmelt)
Approx 40 sleeves
