For Sale - UM - 18306 - Italian Solventless Lamination Machine For Plastic Films

Specification

Reference Numbers

UM - 18306

Product

Italian Solventless Lamination Machine For Plastic Films

Year Of Manufacture

2002

Present Condition

Machine is in working condition

Location

Europe

Product Details

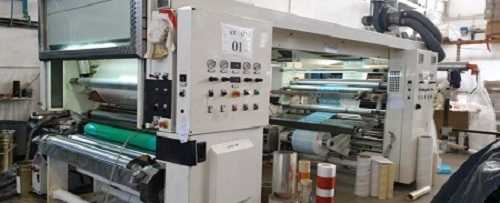

Solventless Lamination machine for plastic films model Entry 1300

With 16 green conveyor rollers:
1 x 44 cm. + 2 x 50 cm. + 1 x 54 cm. + 1 x 54,5 cm. + 1 x 59 cm.
1 x 61 cm. + 1 x 69 cm. + 1 x 72 cm. + 1 x 75 cm. + 1 x 86 cm.
1 x 89 cm. + 1 x 95 cm. + 1 x 99 cm. + 1 x 110 cm. + 1 x 123 cm.
3 red spreader rollers /presser
1 conveyor roller carrier up to 18-places
1 Matrix Mixer - matr.115 for solventless two-component adhesives with
Filling of the resin component - cm.154x120x80 – 5 kw – prod 90kg./h
Machine height cm. 300
Machine length cm.450
Machine width cm.270
Machine weight kg. 5,000
Film nominal width 130 cm
Maximum film width cm. 131.5
Maximum spreading width cm.130
Minimum film width 50 cm
Maximum throw film unwinding kg.25
Maximum shooting film in wrapping - descending pull kg.35
Minimum film unwinding kg.3,5
Maximum film thickness in wrapping 300 microns
Maximum diameter winding / unwinding rolls cm.86
Maximum weight of reels winding / unwinding kg according to the material
Unwinding core diameter from 3 to 6 inches
Inch wrapping core diameter 6
Maximum film speed m / min 300
Water supply for heating units
Fluid to use: water
Minimum pressure 1 bar
Maximum pressure 3 bar
Water hardness from 9 to 12 French degrees
Consumption (liters / hour only in case of intervention of the cooling circuit) 600
Supply line ("G) 3/8
Power supply Three-phase 400 V +/- 10%, 50 Hz
Installed power 45 kW
Maximum absorbed current 80 A
Average absorbed power kW 37 indicative
Main switch installed in panel 100 A
Pneumatic supply: dehumidified, non-lubricated air
Pneumatic pressure from 7 to 10 bar
Air consumption liters / min 60
Supply conduit diameter ("G) 3/8
Power supply for cooling calender: water
Maximum pressure 3 bar
Water Hardness from 9 to 12 French degrees
Flow rate liters / hour 2000
Supply line ("G) 3/4
