Reference NumbersUM - 16036

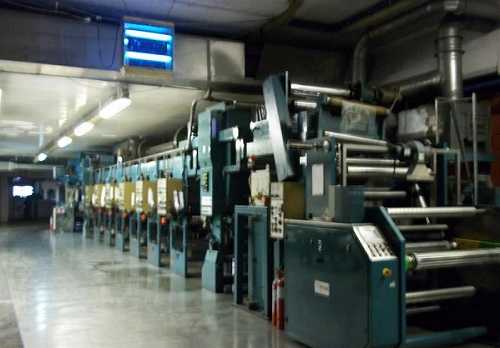

ProductHolweg 8 Colors Rotogravure Printing Machine
Year Of Manufacture1981
Web width (mm): 760
Print width (mm): 740
Drying heat surce: Drying is with electric batteries.
Unwinder type: Turret shafted type units.
Max reel diameter unwinder (mm): 800
Rewinder type: Turret shafted type units.
Max reel diameter rewinder (mm): 800
Register controll: Eltromat
Corona treatment : yes
Print cylinders: Between 500 and 1000 printing cylinders (hollow type)
Additional informations: -
For flexible packaging materials;
With 8 printing units (6 of them are from the initial machine and 2 were added by DCM later,2002)
Interchangeable trolleys for fast changeover.
The unwind and rewind were replaced in (2001) with modern turret shafted type units.
Reel diameter 800 mm.
Extra systems on the machine:
2 sets of trolleys
1 set of pressure rollers
Complete set of ink pans and pumps
Overhaul/renovation: The unwind and rewind were replaced in (2001)
