For Sale - UM - 11265 - 1850 mm 400 kg/hr, 3 Layer Cast Film Line

Specification

Reference Numbers

UM - 11265

Product

1850 mm 400 kg/hr, 3 Layer Cast Film Line

Year Of Manufacture

1996

Location

Italy

Product Details

- Manufacturer: TAU SYSTEM
- Model: AX-1-CAST
- Film structure: BAC
- Material: STRETCH ,CPP
- Film width (mm): 1850
- Speed (m/min): Mechanical speed of winders: 10-200m/min;
- Output (Kg/h): Output:420 kg/h;

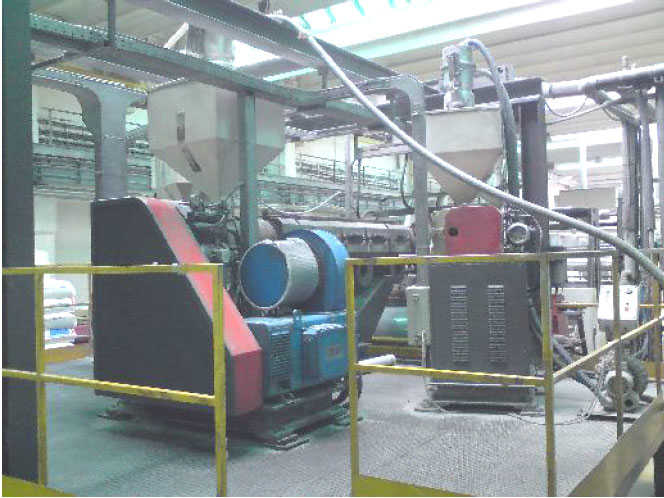

- Extruder 1 Layer ref: : A - Type: 55/30 D; Screw speed: 0-200 rpm, Length:1650mm
- Screw diam: 55
- Description: Gravimetric dosing unit
- Extruder 2 Layer ref: : B- Type 90/30D, Length:2700mm;screw speed: 0-145rpm
- Screw diam: 90
- Description: Gravimetric dosing unit
- Extruder 3 Layer ref: : C - Type: 55/30 D; Screw speed: 0-200 rpm
- Screw diam: 55
- Description: Gravimetric dosing unit
- Die width (mm): 1850

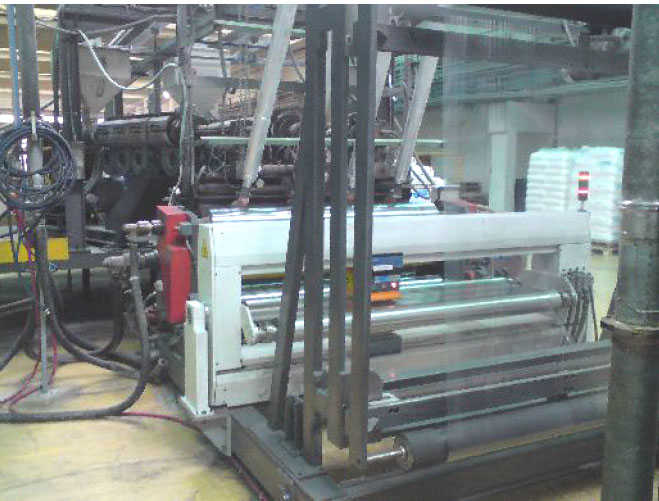

- Chill roll unit: Flat die type L3J 1850 mm; lip gaps adjustable: 10-100 microns,Upperlip gapping:
every 25 mm push screw;Heating: 9zones
- Flow surface: hard chromium plated and mirrorpolished;\r\n\r\n\r\n
- Thickness controll system: Oscillating take off unit; Sintel 900 system thickness ,gauge system

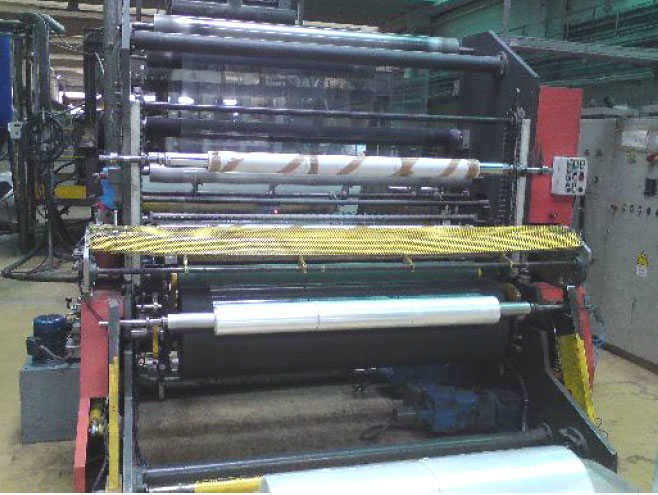

- Rewinder description: Semi-automatic
- Cardboard cores for bobbins: 76 mm (internal diam.)

(For images Please see following page)
