For Sale - UM - 11269 - 5 Layer Extrusion Cast Film Line

Specification

Reference Numbers

UM - 11269

Product

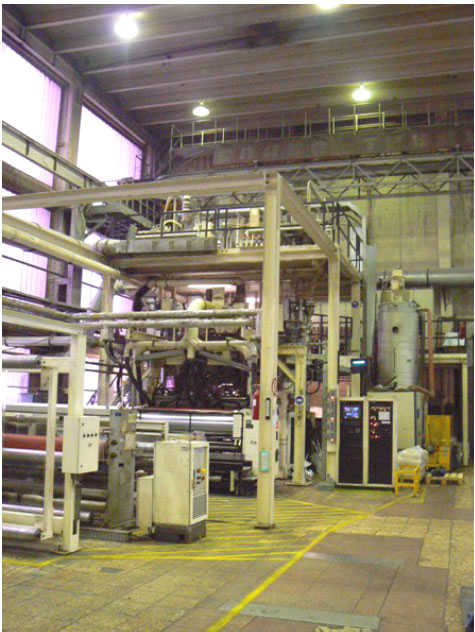

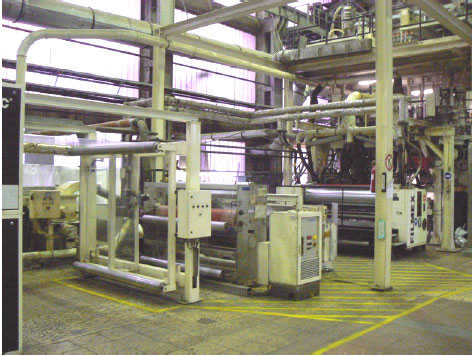

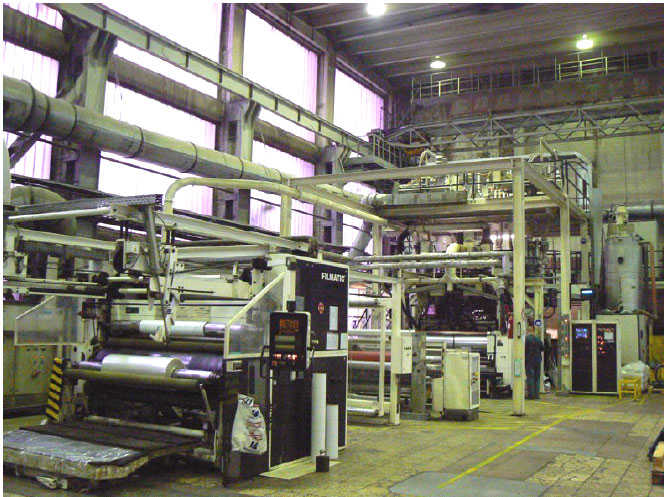

5 Layer Extrusion Cast Film Line

Year Of Manufacture

1999

Location

Italy

Product Details

Model: FILMEX
- Film structure: CDEBA; EDCBA; ABEDC; EAAAC; ECBAD
- Material: CPP , Barrier film
- Film width (mm): 1760
- Extruder 1 Layer ref: : A
- Screw diam: 120/30
- Description: Gravimetric dosing unit 3 comp
- Extruder 2 Layer ref: : B
- Screw diam: 50/25
- Description: Gravimetric dosing unit 1 comp
- Extruder 3 Layer ref: : C
- Screw diam: 90/30
- Description: Gravimetric dosing unit 3 comp
- Extruder 4 Layer ref: : D
- Screw diam: 50/25
- Description: Gravimetric dosing unit 1 comp
- Extruder 5 Layer ref: : E
- Screw diam: 70/30
- Description: Gravimetric dosing unit 3 comp
- Head description: Automatic VERBRUGGEN FEEDBLOCK:CLOREN
- Die width (mm): 1900
- Chill roll unit: 2 chill rolls: First f 700mm, second f 400mm;2100 mm width; chrome plated
Electrostatic edge pinning
- Thickness controll system: Automatic Beta rays
- Corona treatment: yes

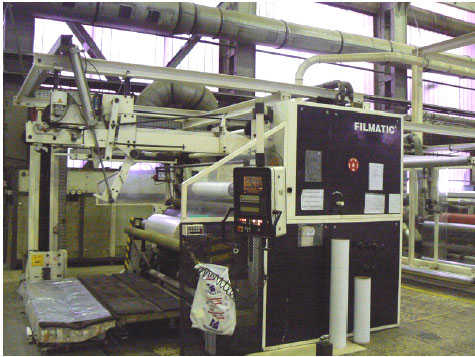

- Rewinder max reel diameter (mm): 1000

(For images Please see following Page)
