For Sale - UM - 11558 - Dolci 3 Layer Cast Extrusion Line

Specification

Reference Numbers

UM - 11558

Product

Dolci 3 Layer Cast Extrusion Line

Year Of Manufacture

1993

Location

The Netherlands

Product Details

- No. of Layer: 3
- Diameter die: Width 2950 mm
- Diameter Screw: 90 - 180 - 90
- L:D ratio Screw: 30:25, 5:30
- Material & Thickness: CPP 0017-0030
- Max. Film width: 2600 mm
- Max. Output: 500 Kg/hour
- Rewind manufacturer: Reifenhauser (Year 2013)
- Rewind type: Gap and Contact
- Max. rewind reel diameter: 800 mm
- Rotating part: Die / Take off
- Dosing unit: Doteco
- Thickness measurement: Sintex WIX
- Edge guides, Corona treater, Inline slitting, mannuals available
- Machine has been rebuild from Stretch to CPP including Edge trim and recycling extruder
- Machine in Production

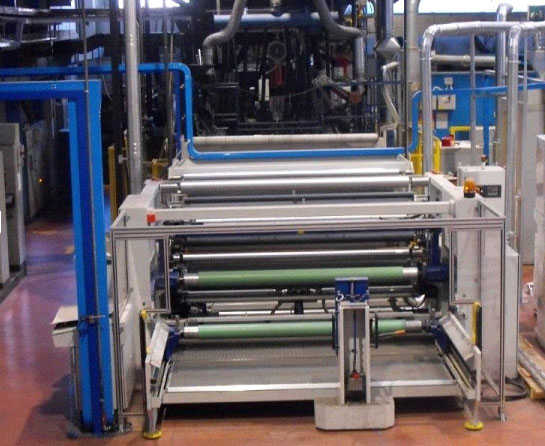

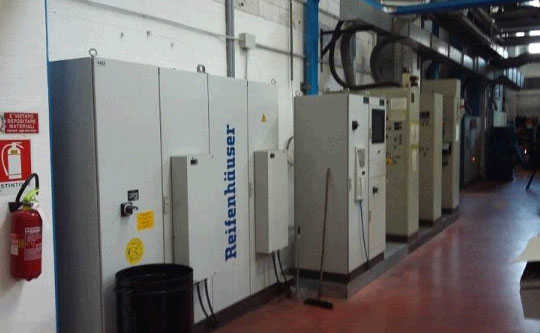

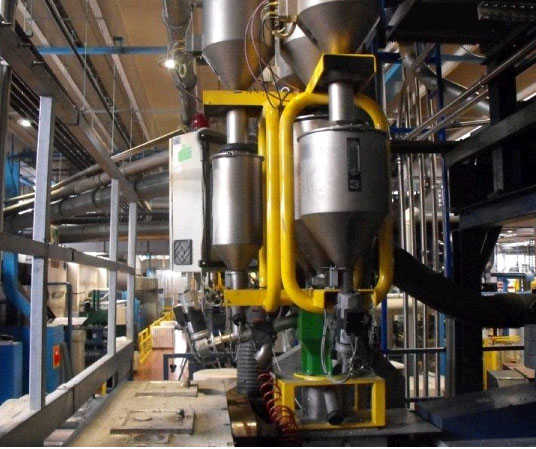

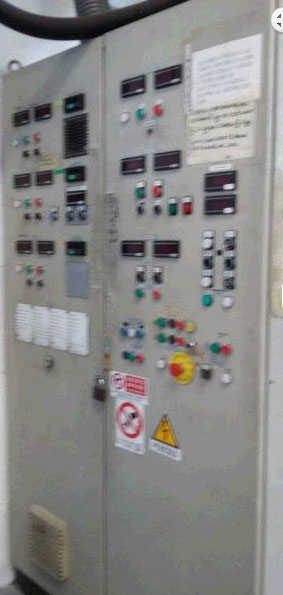

(For images, Please see next pages.)
