For Sale - UM - 13598 - Tatran Blockbottom Bag Making Machine

Specification

Reference Numbers

UM - 13598

Product

Tatran Blockbottom Bag Making Machine

Year Of Manufacture

1991

Location

Europe

Product Details

TATRAN Machine for production of
1-ply block bottom bags with gussets and
rectangular bottom and with flexo printing tower 4 colors,
sizes similar to W+H Triumph
Produced by: Tatrasvit,
Slovak republic, Parameters of produced goods
Width of bags: 55 – 120 mm,
Width of bottom: 30 – 65 mm,
Length of cut-out: 160 – 320 mm,
Basic parameters of machine Step: 10 mm,
modulus 3,18 mm, Max width of print: 450 mm,
Max diameter of reels: 1200 mm,
Max speed: 150 pcs/min,
Print cylinders: 14 pcs,

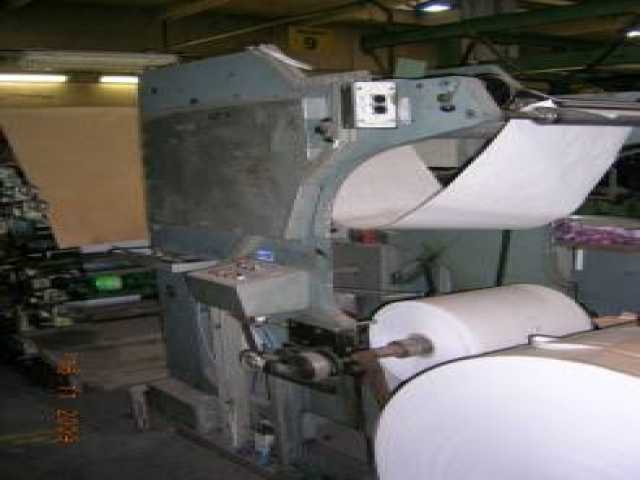

Electric unwinder with lift of reel,
Spare parts: New raster cylinders – 5 pcs,
Molding used drum –3 pcs,
Spare print complete–1 pcs,
Spare force pump,
4 wooden container of molding accessories (cutting knives, pull selectors, excenters etc.)
