For Sale - UM - 16711 - 120 MM Davis Standard Extruder

Specification

Reference Numbers

UM - 16711

Product

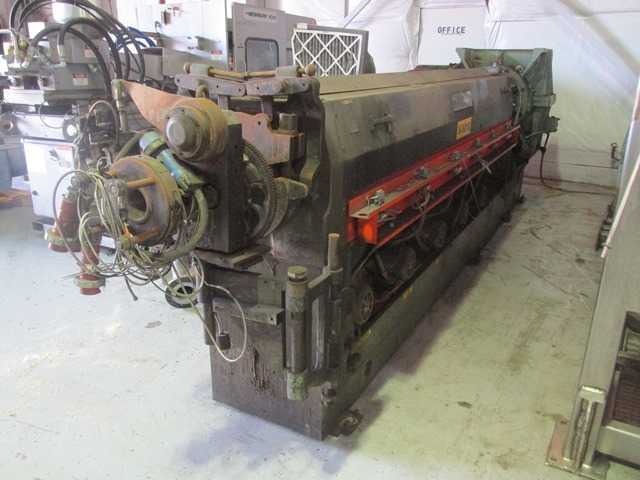

120 MM Davis Standard Extruder

Year Of Manufacture

1988

Location

USA

Product Details

30:1 l/d,
Electrical heated,
Air cooled barrel,
Jacketed feed section,

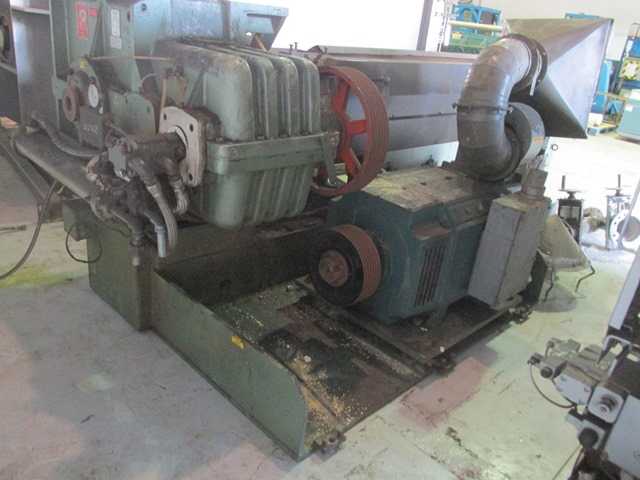

Driven by 200 hp dc motor,
1750/2000 rpm, 500 volt,
Gearbox rated 525 hp,
1.5 service factor,

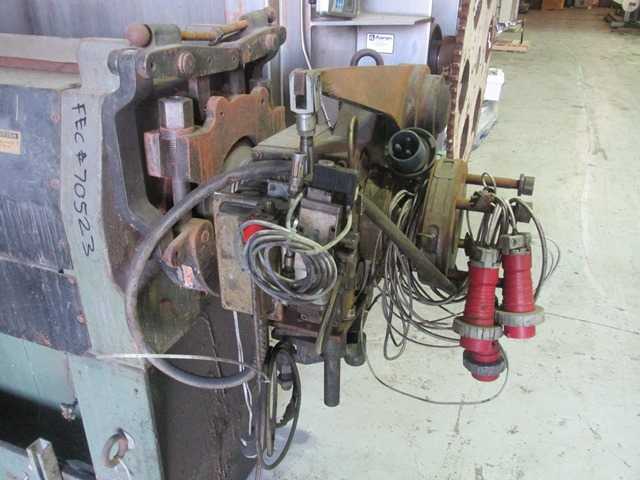

Die clamp with Gneub model SF60 screen changer,
SO# 01496,

Product Specifications:-
Drawings: Yes
Length To Diameter Ratio: 30
Manuals: Yes
Motor HP: 200
Screw Diameter: 4.7
