For Sale - UM - 2304 - Battenfeld - Fischer Continuous Extrusion Blow Mol

Specification

Reference Numbers

UM - 2304

Product

Battenfeld - Fischer Continuous Extrusion Blow Mol

Year Of Manufacture

1988

Location

USA

Product Details

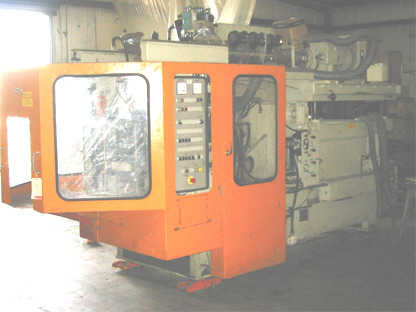

Battenfeld - Fischer VK1-5 continuous extrusion blow molding machine with 4901 hours on it.
- 60 mm 20 to 1 WT groove barrel extruder with Kohlman gearbox and Pillar drive motor. It has ceramics heaters and fan cooling. Last ran PP or PE. Screw speed
22 to 99 rpm. 25 to 100 kg/hr (225 lb/hr) through put in HDPE
- Dual 150 mm PE head model S2/60 - 150 with 2 programming cylinders
- Profile 32 point 2 channel Parison programmer with Parison length controller
Schleicher PLC
- 10 BBC heating instrument with automatic heater band supervision
- Air-conditioned electric cabinet
- Hydraulic calibration
- Top in the bottom punches
- Hot knife
- 10 tons clamp force good to 10 litre bottles
- Blow mold length 450 (525) mm
- Blow mold width 340 mm
- Blow mold depth 2 x 130 mm or 2 x 155 mm shut height
- Proportional hydraulic on mold transport and mold closing movement
- Quick adjustment scales and clamps
- Screw RPM and Amp meter
- Cycle counter and hour meter
- Digital cycle time indicator
- Machine can produce bottles up to 10 litres, 2.5 gallons.

Ex Works Price: US$ 75,000/-
- Available with single S1/120 head: US$ 15,000/-
- Available with triple 100 mm head S3/35-100: US$ 17,500/-
- Cold cutting presqueeze knife US$ 2,900/-
