For Sale - UM - 2624 - 4 1/2" Battenfeld Gloucester Laminating Line

Specification

Reference Numbers

UM - 2624

Product

4 1/2" Battenfeld Gloucester Laminating Line

Location

USA

Product Details

Consisting of:
- Battenfeld Gloucester 4 1/2'' single screw extruder, model 244-001
- 24 to 1 L/D ratio
- Electrically heated, water cooled side vented 5 zone barrel
- Water cooled feed throat with hopper
- Approximate 43'' centerline height
- Driven by a 150 hp, 500 volt, 1750/2000 rpm DC motor through a gearbox, ratio 12.45 to 1. Control panel with a Reliance Flexpak VS drive
- Beringer 4 1/2'' hydraulic screen changer
- Maag type 56/56 gear pump, 30 hp DC motor
- 54'' wide EDI model H-40 Autoflex die on cart

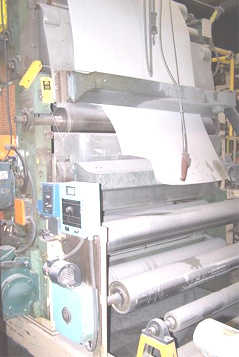

- Gloucester 2 roll sheet stack
- (2) 16'' diameter x 60'' long chrome plated cored rolls
- 60'' wide magnetic power systems web tension control
- Ambrit unwinder
- Gloucester nip/haul off station
- Advantage model TSE-935-4JH6X temperature controller
- Miscellaneous control panels and transformers
