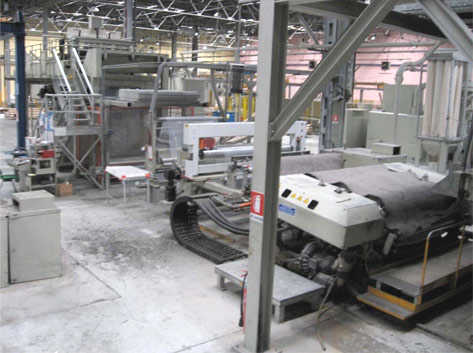

For Sale - UM - 3240 - 5 to 7 Layer Reifenhauser Cast Line for Sheets

Specification

Reference Numbers

UM - 3240

Product

5 to 7 Layer Reifenhauser Cast Line for Sheets

Year Of Manufacture

1998

Location

Europe

Product Details

- Used for sheet PP for thermoforming
- Working width: 1600/1650 mm (net)

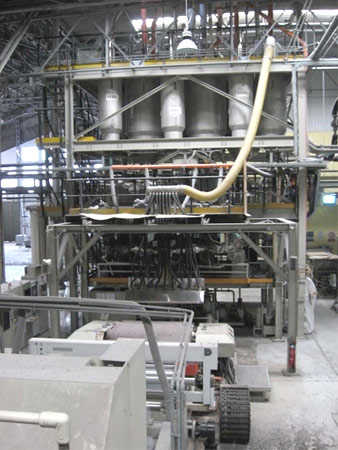

- 1 silos for each component and automatic distribution to dosing and extruders

5 extruders
1) A extruder with:
- Screw diameter 60 mm; 30 L/D
- Bimetallic
- Dosing

2) B extruder with:
- Screw diameter 100 mm; 30 L/D
- Bimetallic
- Motor power 132 KW approx.
- Dosing: 4 components

3) C extruder with:
- Screw diameter 100 mm; 30 L/D
- Bimetallic
- Motor power 132 KW approx.
- Dosing: 4 components

4) D extruder with:
- Screw diameter 70 mm; 30 L/D
- Bimetallic
- Dosing: Gravimetric 2 components

5) E extruder with:
- Bimetallic

Head
- Make: Reifenhauser
- 5 - 7 layers

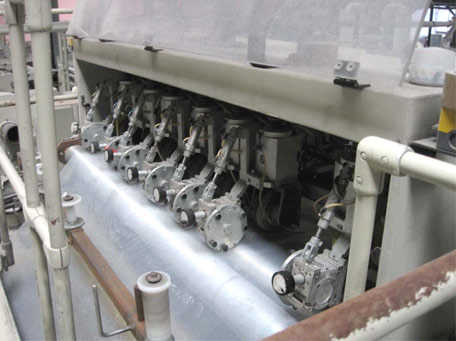

- Automatic thickness control
- Feedblock Reikofil

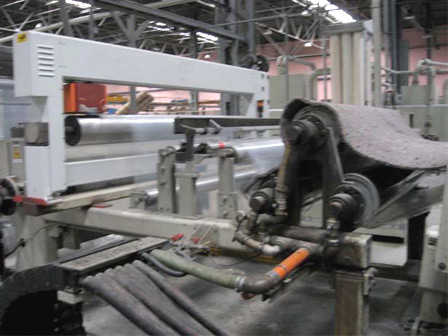

- 3 chill roll, recently changed
- Automatic thickness control electronic system new

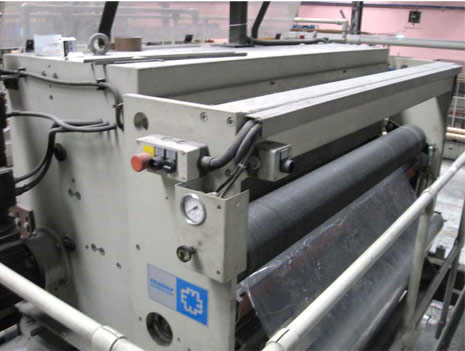

- Corona treatment AFS
- E+L web guide
- In line slitting unit Maier, recently added
- In line recovery trims system with exact trimming and supplementary extruder
- N system

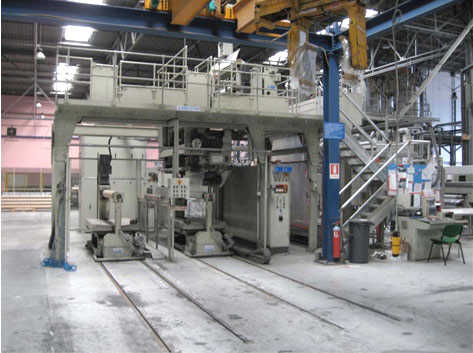

- Rewinder non stop automatic change

(For images, please see next pages)
