For Sale - UM - 3286 - Primplast 4 Layer Cast Film Line

Specification

Reference Numbers

UM - 3286

Product

Primplast 4 Layer Cast Film Line

Year Of Manufacture

2004

Location

Europe

Product Details

Model: CS 200 F/C
- Number of layers: 4
- Material: LLDPE Stretch film
- Width: 2000

- Extruder1 name: A
- Screw diameter: 90
- Motor power: 110 KW

- Extruder2 name: B
- Screw diameter: 160
- Motor power: 315 KW

- Extruder3 name: C
- Screw diameter: 120
- Motor power: 200 KW

- Head automatic: No
- Head internal deckling: No
- Head die width: 2550
- Head thickness control system: Beta rays gauge (1 scanner), Type: S9000/HISCAN
- Head notes:
a. Model PC/AV 260 EC/2
b. Power: 346 KW x 2
c. Chill roll width: 2750(Diameter 1350)
- Chill roll control system: Tank and pomps group included chiller pipes Corema
- Die: Cloeren 2550 mm
- Rewinding type: Automatic
a. AVD 2000 B with antistatic bars
b. Pneumatic rubber coated pressure roll;
c. (3) pneumatic shafts for cardboard cores: 76 mm
- Granulator: Aertecnica Croci Model 800 x 450

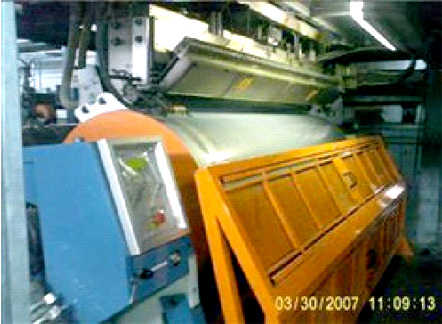

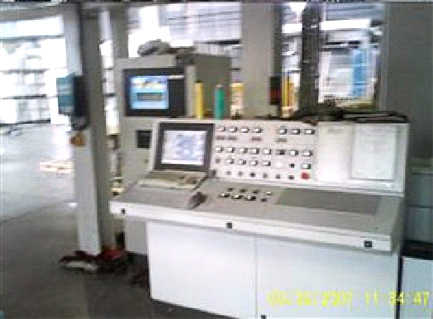

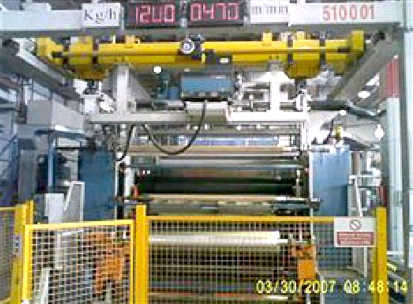

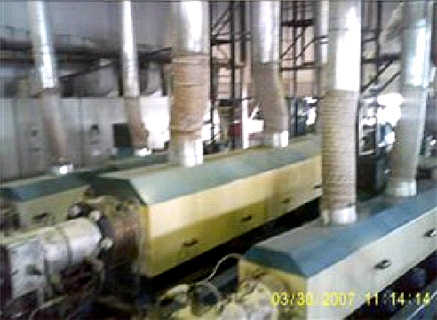

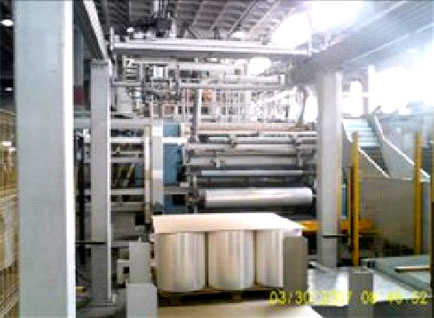

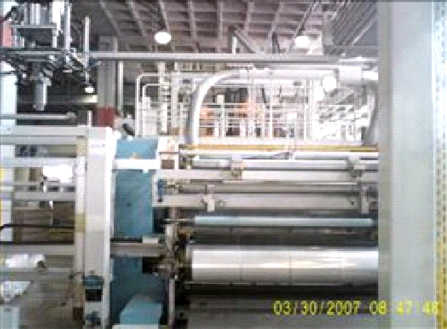

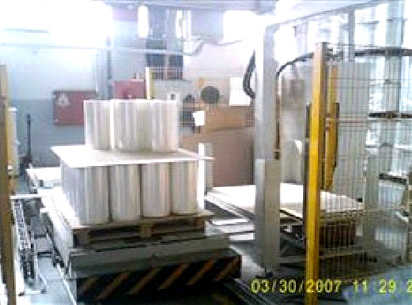

(For images, please see next pages)
